MODEL: KC-10KX/U50

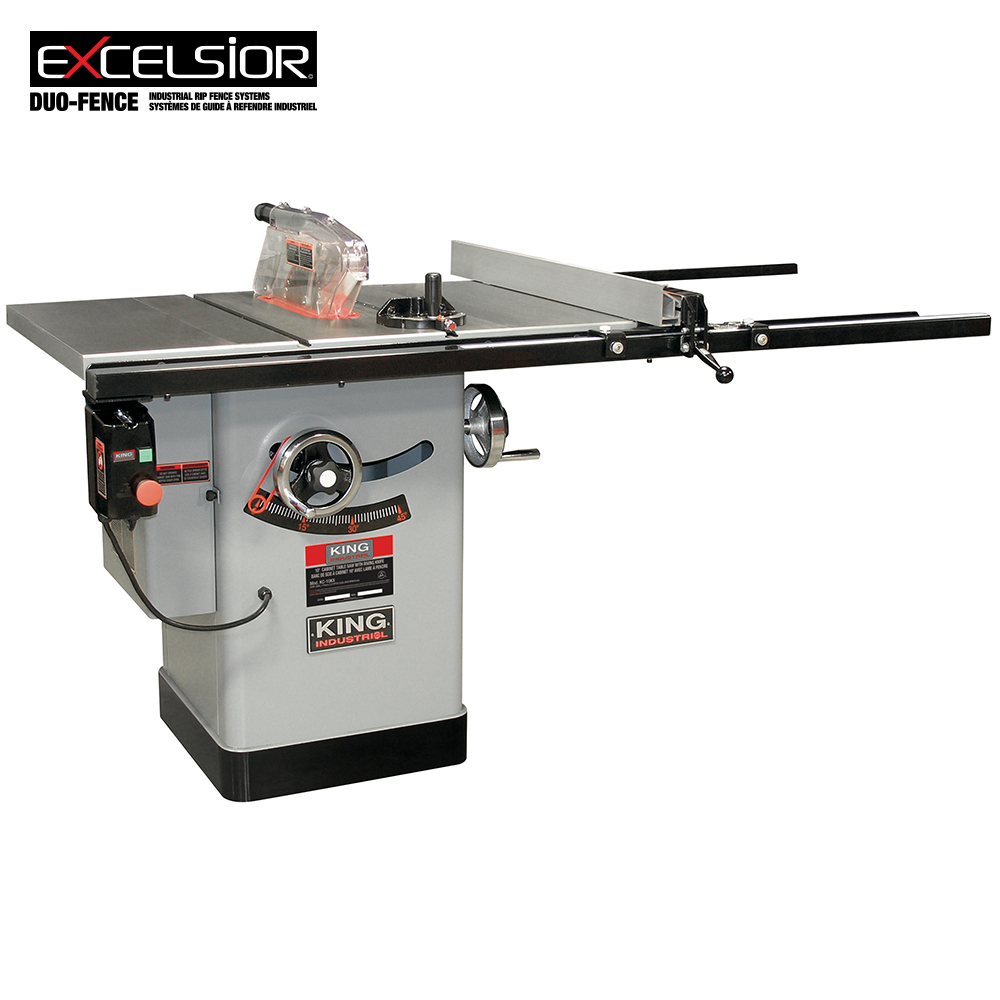

10” CABINET TABLE SAW

  • Powerful 2.5 HP, 230V motor
  • Heavy-duty cast-iron table and extension tables are double ground for accuracy and finish

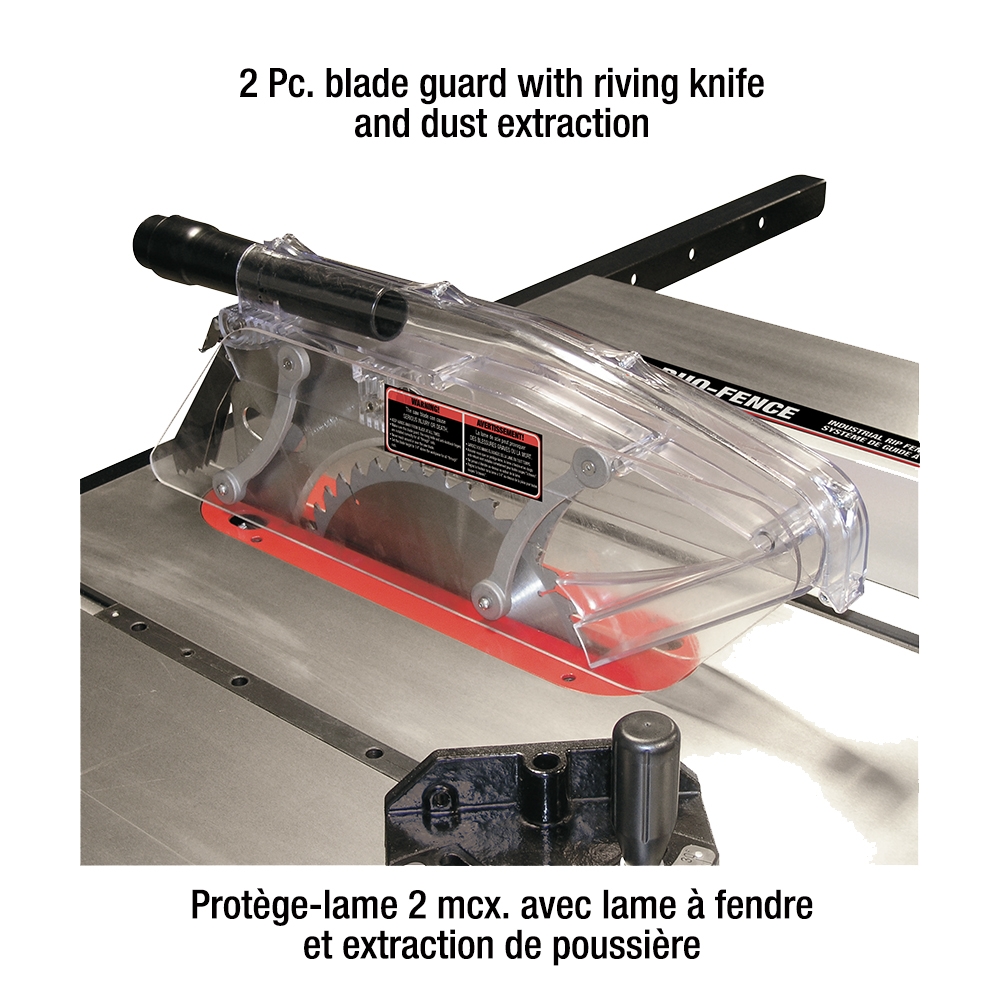

  • Riving knife system for maximum operator safety
  • Table has “T” slots for miter gauge and beveled front edge
  • Magnetic safety switch
  • Large 8" diameter chromed handwheels with center locking knobs
  • Comes with 10" x 40 tooth carbide tipped saw blade, cast-iron miter gauge, standard and dado inserts, push stick storage hooks and hex. keys
  • 50" Max rip capacity

Substitute Banks Item
UPC
772995014934

Video

Video

Specification

Specification

  • BLADE DIAMETER10"
  • BLADE TILTSLeft
  • DEPTH OF CUT AT 45°2-3/16"
  • MAXIMUM DEPTH OF CUT AT 90˚3-1/8"
  • TABLE SIZE WITH EXTENSIONS40" x 27"
  • DIAMETER OF ARBOR5/8"
  • ARBOR SPEED (RPM)3,850
  • MOTOR2.5 HP, 9.6 Amp.
  • VOLTAGE230V, 1 phase, 60 Hz
  • WEIGHT410 lbs
  • UPC7 72995 01493 4
