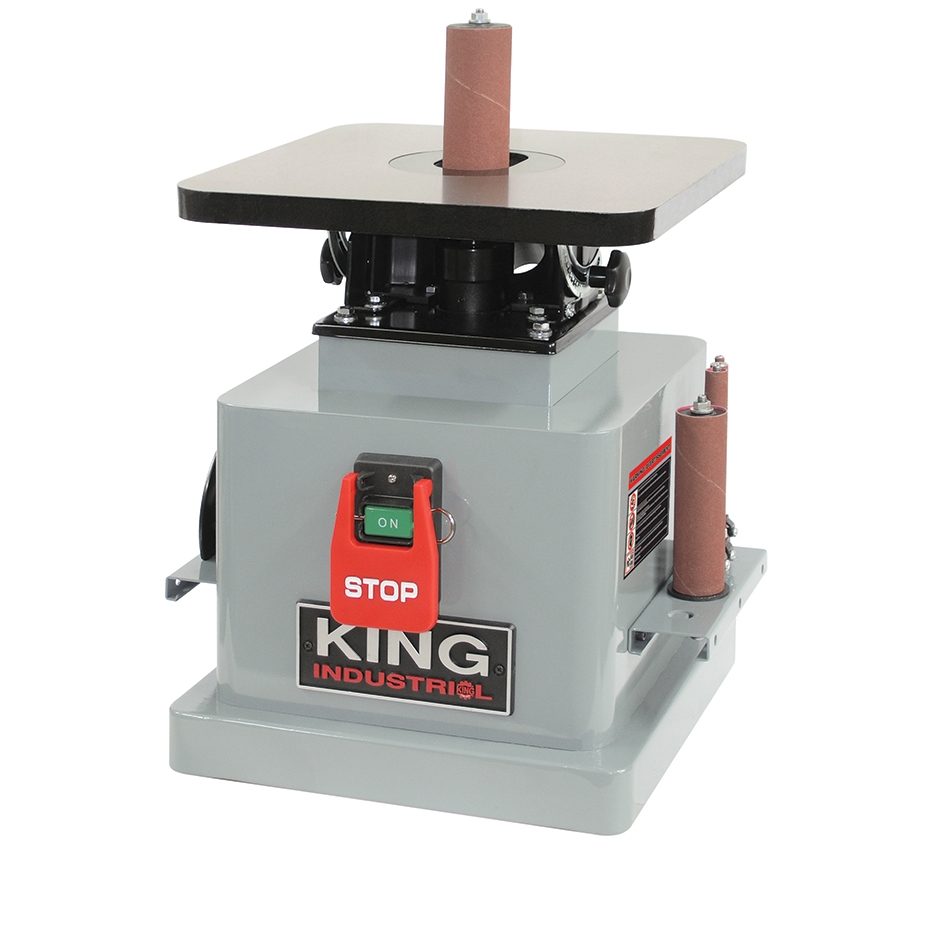

MODEL: KC-OVS-TL

OSCILLATING SPINDLE SANDER

  • Rotating and oscillating effect ensures exceptional finishing results
  • Precision ground heavy-duty cast-iron table

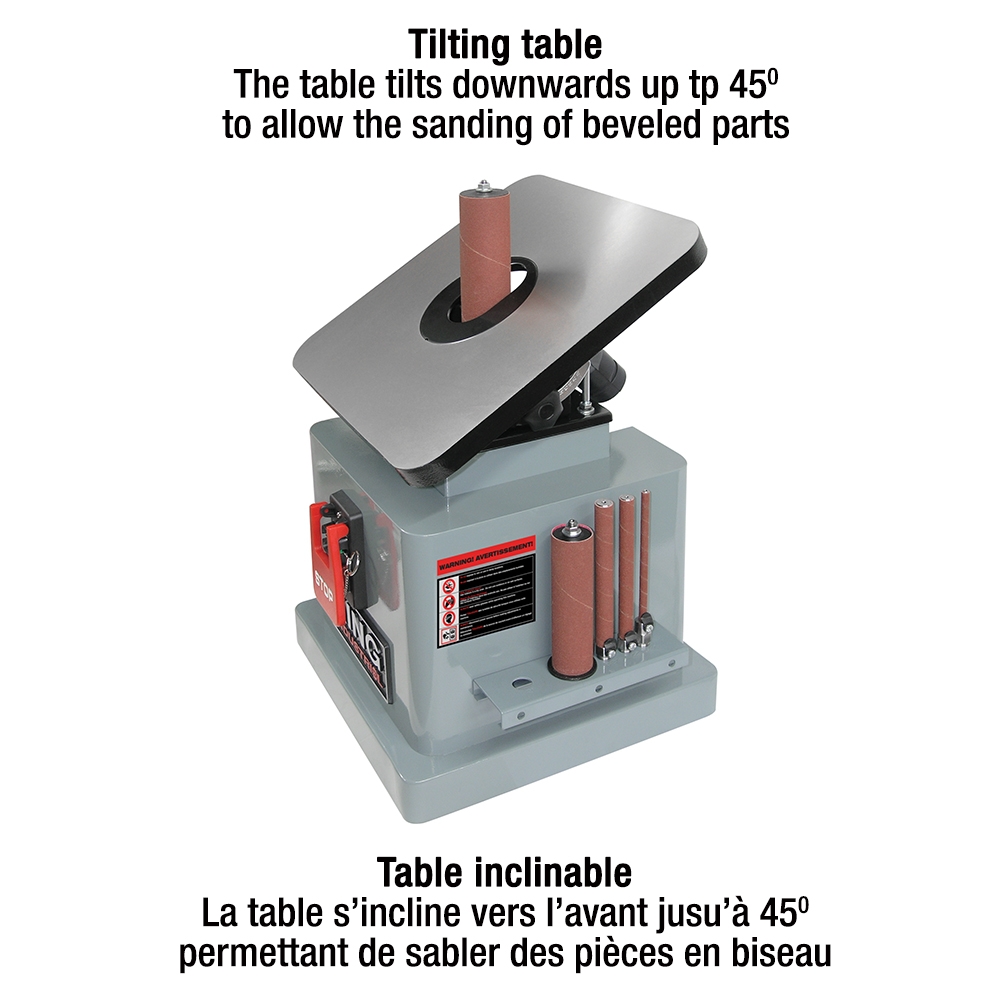

  • Table can be tilted downwards up to a maximum of 45° to allow the sanding of beveled parts
  • Graduated bevel scale for accurate reading of the degree of tilt
  • On-board side mounted spindle and table insert storage

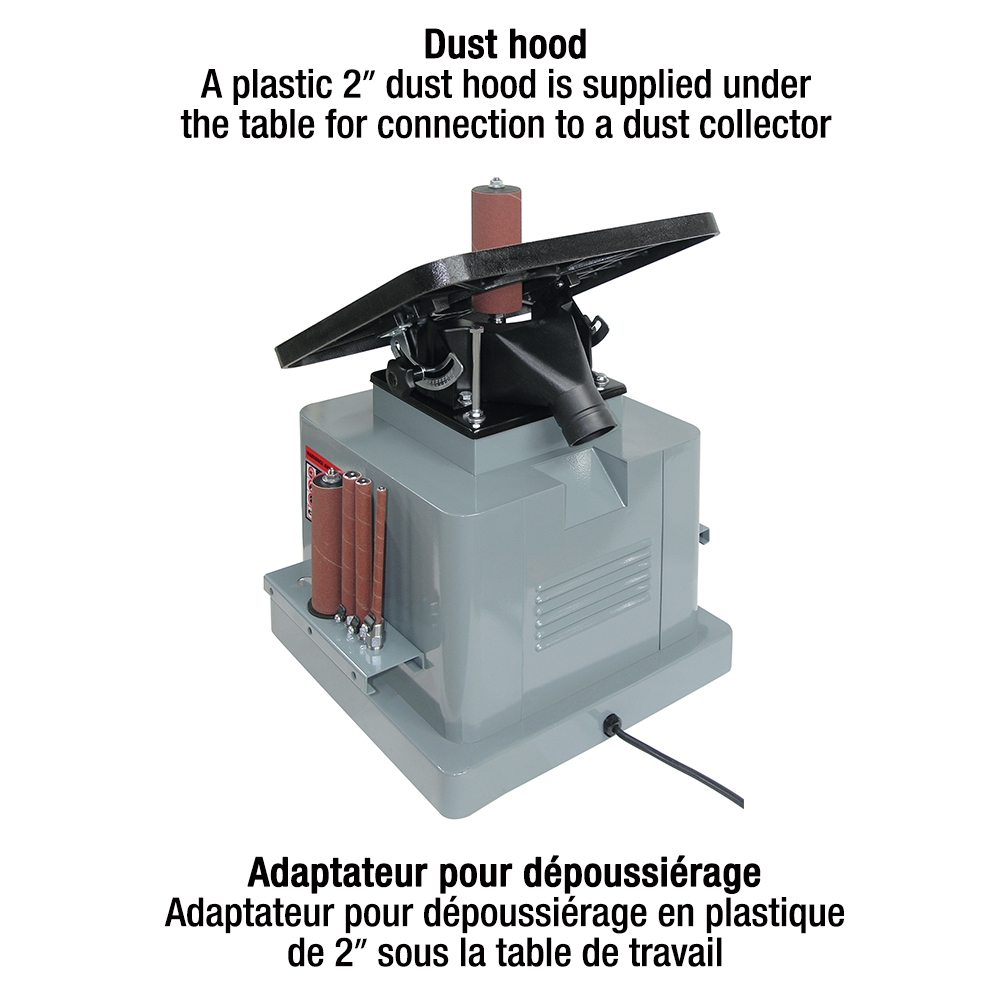

  • A plastic 2" dust hood is supplied under the table for connection to a dust collector
  • Comes standard with 3 spindles (1/4", 1/2" and 5/8") and 2 drums (1-1/2" and 2")

Substitute Banks Item
UPC
772995012718

Video

Video

Specification

Specification

  • OSCILLATIONS PER MINUTE29
  • OSCILLATIONS STROKE15/16"
  • SPINDLE DRUM DIAMETER1-1/2" - 2"
  • SPINDLE DIAMETER1/4" - 1/2" - 5/8"
  • SPINDLE SPEED1,720 RPM
  • TABLE SIZE14-3/4" x 14-3/4"
  • DUST HOOD OUTLET DIAMETER2"
  • MOTOR7.5 Amp.
  • VOLTAGE120V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT17-1/2" x 14-3/4" x 18-7/8" / 77 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT17" x 17" x 21" / 82 lbs
  • UPC7 72995 01271 8
