KC-701C OSCILLATING SPINDLE SANDER Zoom

MODEL: KC-701C

OSCILLATING SPINDLE SANDER

  • Powerful 1/2 HP motor
  • Rotating and oscillating effect ensures exceptional finishing results
  • Ideal for sanding contours, arcs, curves and other irregular shapes
  • Precision ground heavy-duty cast-iron table

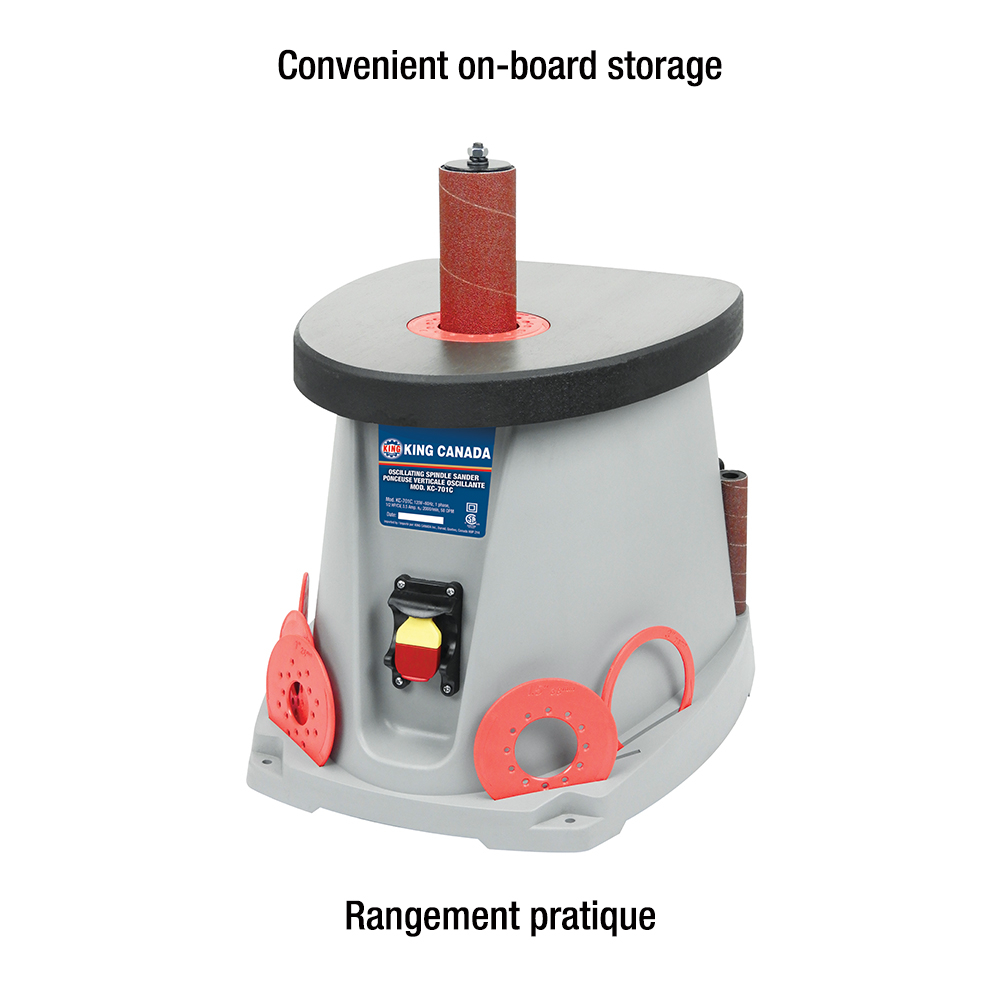

  • Convenient on-board drum and table insert storage

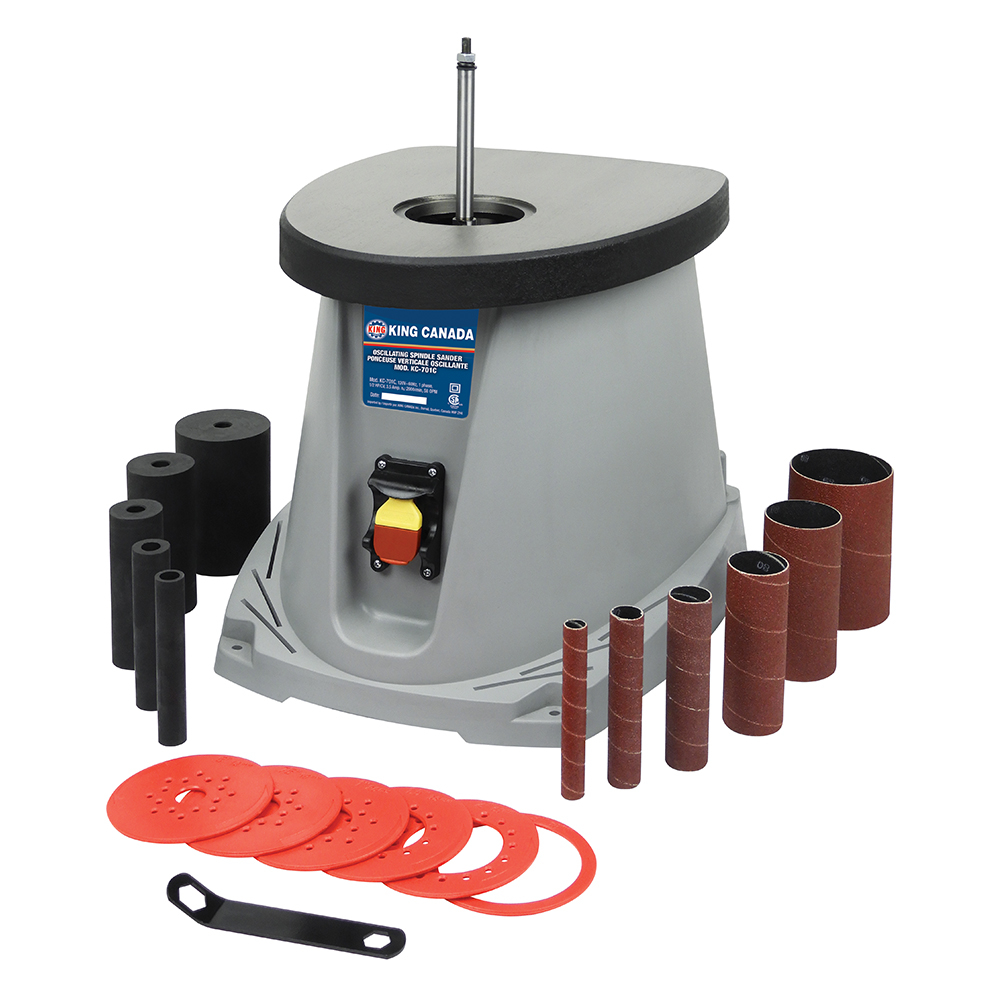

  • Comes standard with 1/2" spindle, 5 drums (3/4", 1", 1-1/2", 2", 3"), 6 sanding sleeves (1/2", 3/4", 1", 1-1/2", 2", 3"- 80 Grit), 6 table inserts, washers and adjustment wrench



Substitute Banks Item
UPC
772995016235
KING CANADA

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • OSCILLATIONS PER MINUTE58
  • OSCILLATIONS STROKE5/8"
  • SPINDLE DRUMS DIAMETER3/4" - 3"
  • SPINDLE LENGTH & DIAMETER4-1/2" x 1/2"
  • SPINDLE SPEED2,000 RPM
  • TABLE SIZE14-3/4" x 12"

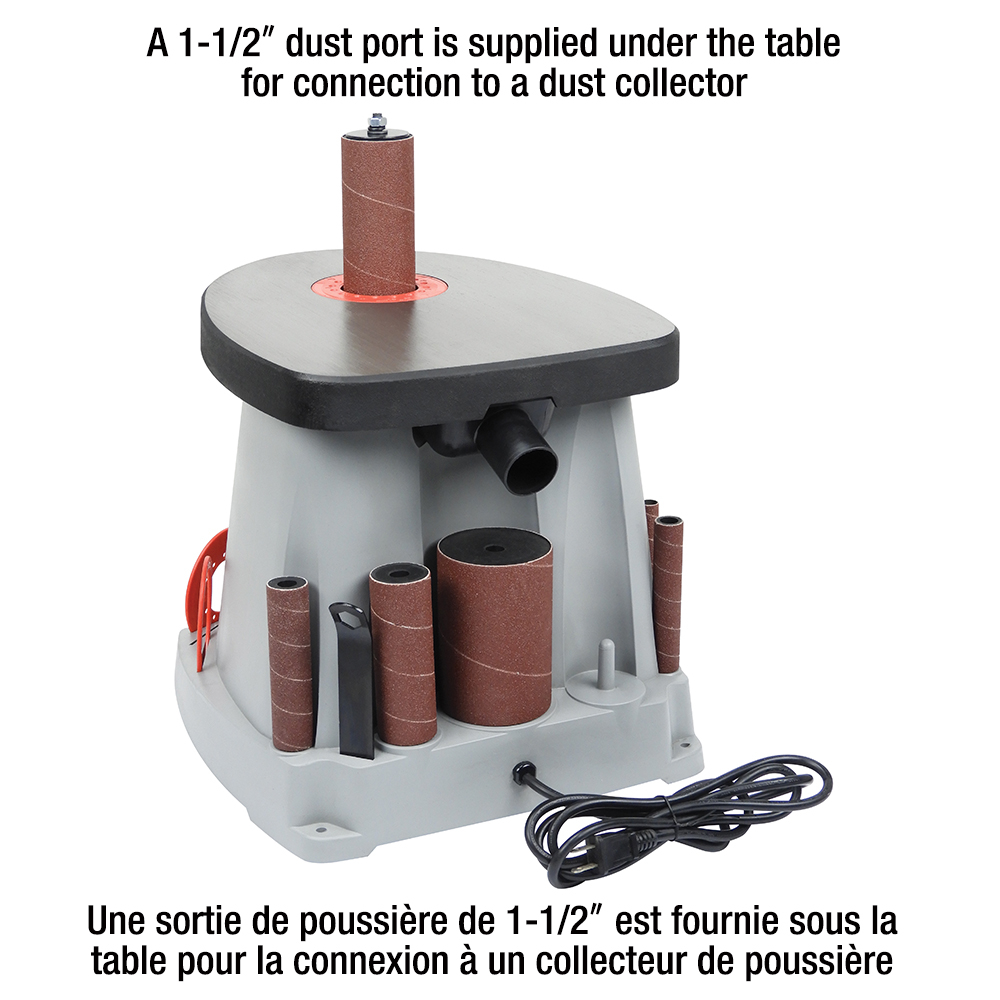

  • DUST PORT DIAMETER1-1/2"
  • MOTOR3.5 Amp.
  • VOLTAGE120V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT13-3/4" x 15-3/4" x 18" / 27 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT18-1/8" x 15-3/4" x 20-1/2" / 31 lbs
  • UPC7 72995 01623 5
