MODEL: KC-70FX

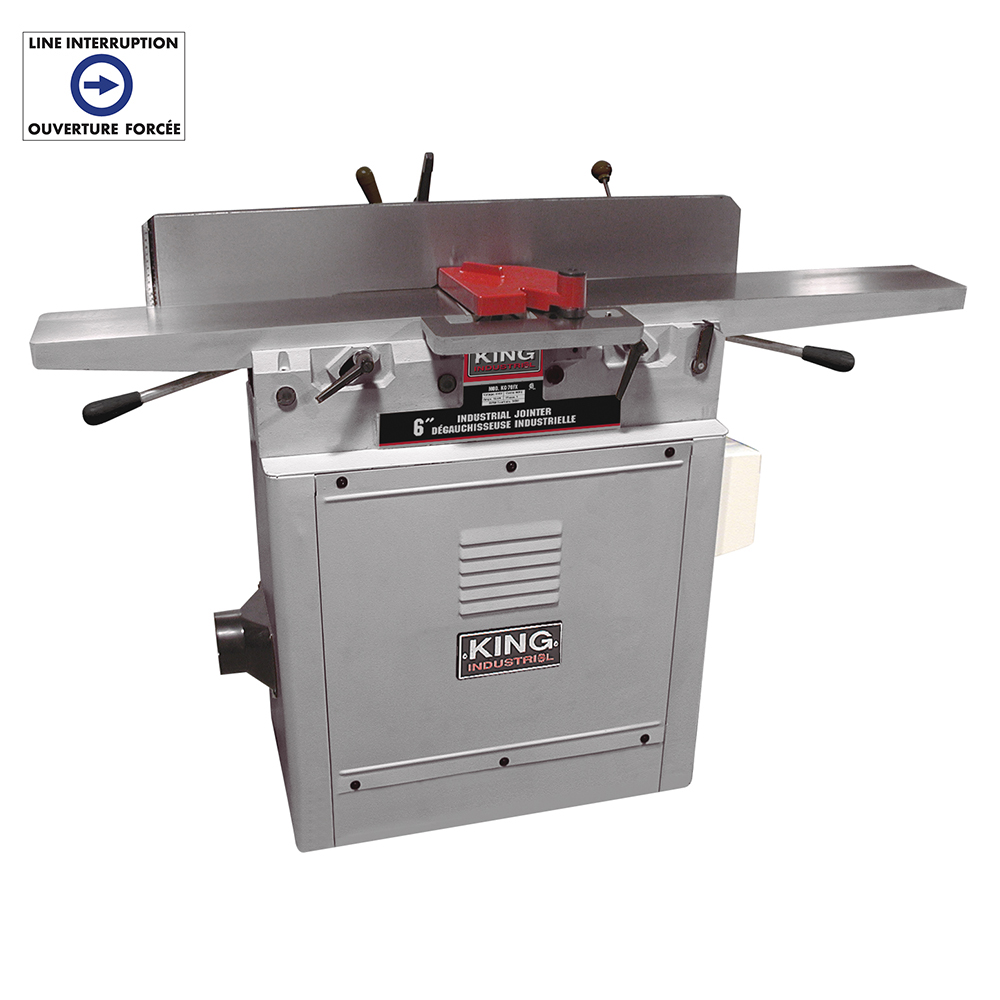

6" INDUSTRIAL JOINTER

  • Powerful 2 HP motor
  • Parallelogram table adjustment system
  • 3 knifes cutterhead allows rapid cutting while producing a superior finish
  • Precision ground cast-iron tables
  • One piece welded cabinet stand has built-in 4" dust chute for dust collector hook-up
  • Lever actuated infeed table with lock handle, for quick easy height adjustment
  • Graduated scale located on fence
  • Magnetic safety switch

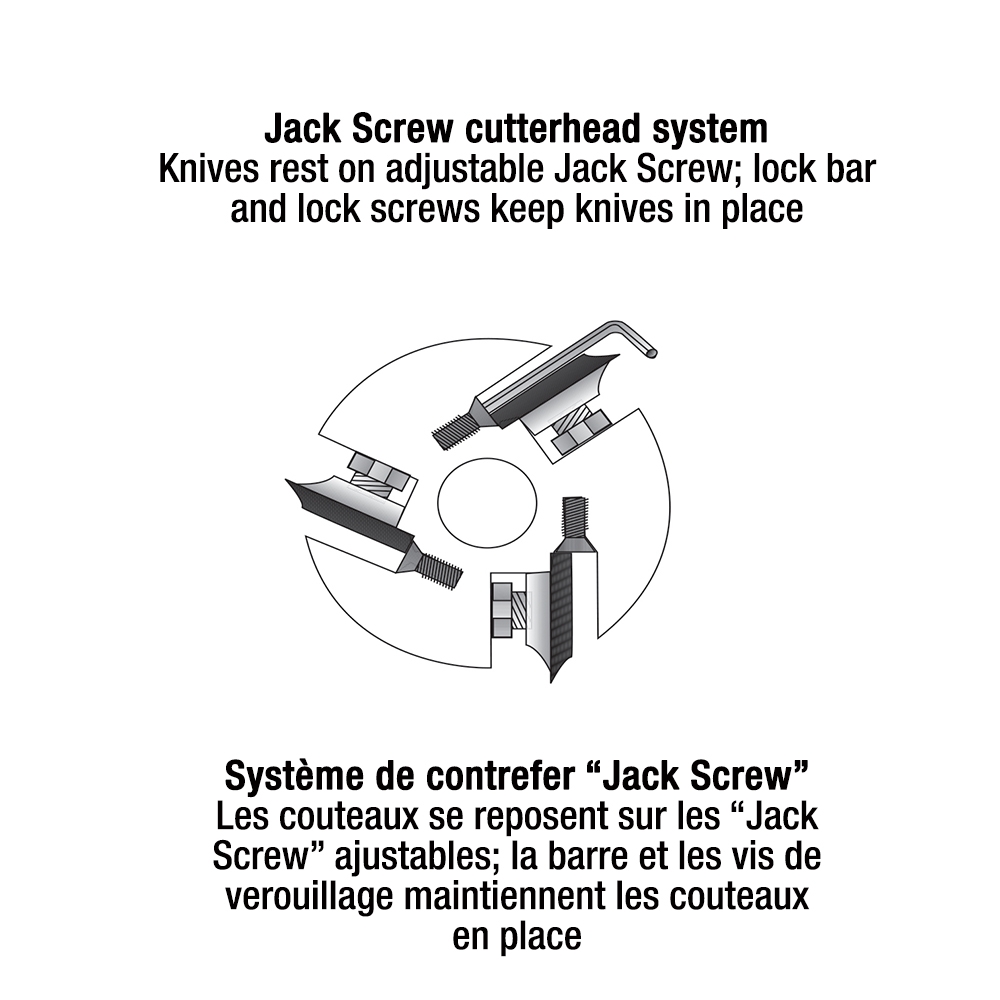

  • Knives rest on adjustable Jack Screws; lock bar and lock screws keep knives in place

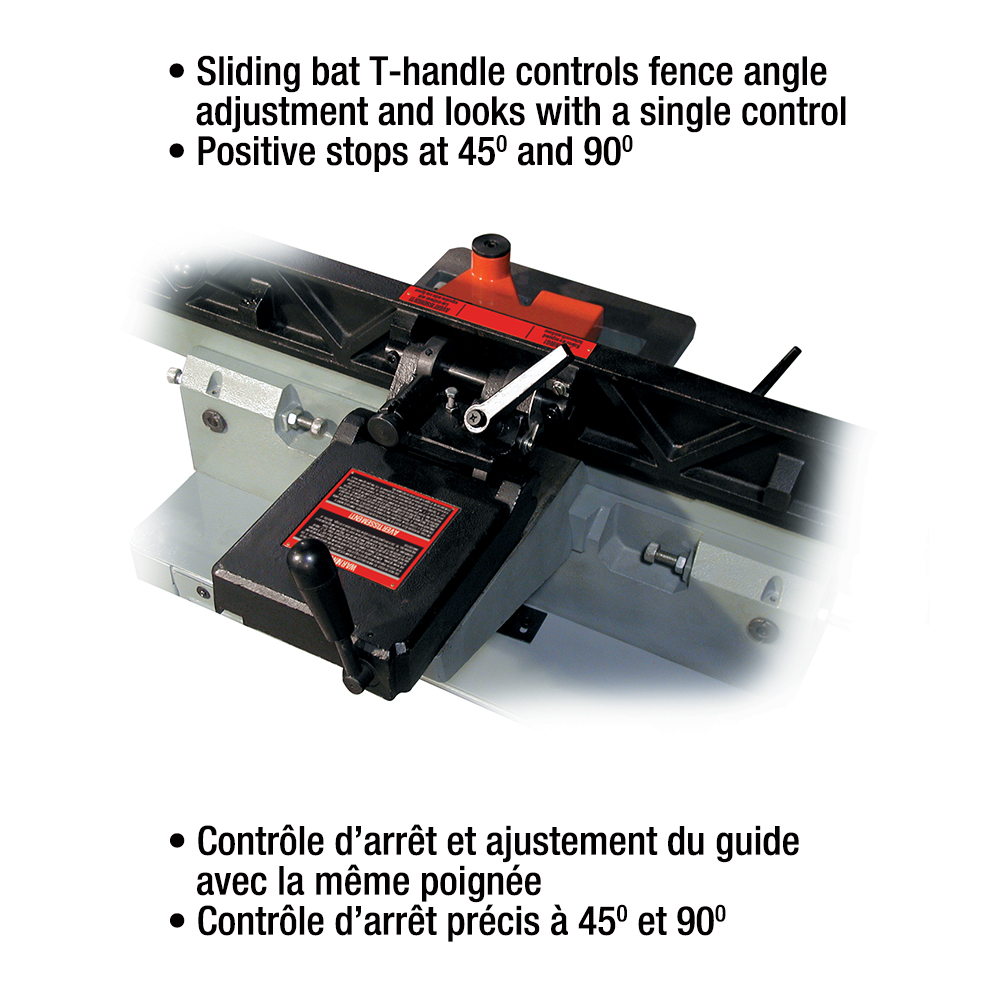

  • Sliding bar T-handle controls fence angle adjustment and locks with a single control
  • Includes 2 safety push blocks

Substitute Banks Item
UPC
772995001620

Video

Video

Specification

Specification

  • CAPACITY6"
  • CUTTERHEAD SPEED5,500 RPM
  • DIAMETER OF THE CUTTERHEAD3-3/8"
  • RABBETING CAPACITY1/2" x 6"
  • TABLE SIZE6" x 55-1/2"
  • FENCE SIZE36" x 5"
  • MOTOR15 Amp.
  • VOLTAGE110V, 1 phase, 60 Hz
  • DIMENSIONS (LXWXH) / WEIGHT55-1/2" x 24" x 32" / 328 lbs
  • UPC7 72995 00162 0
