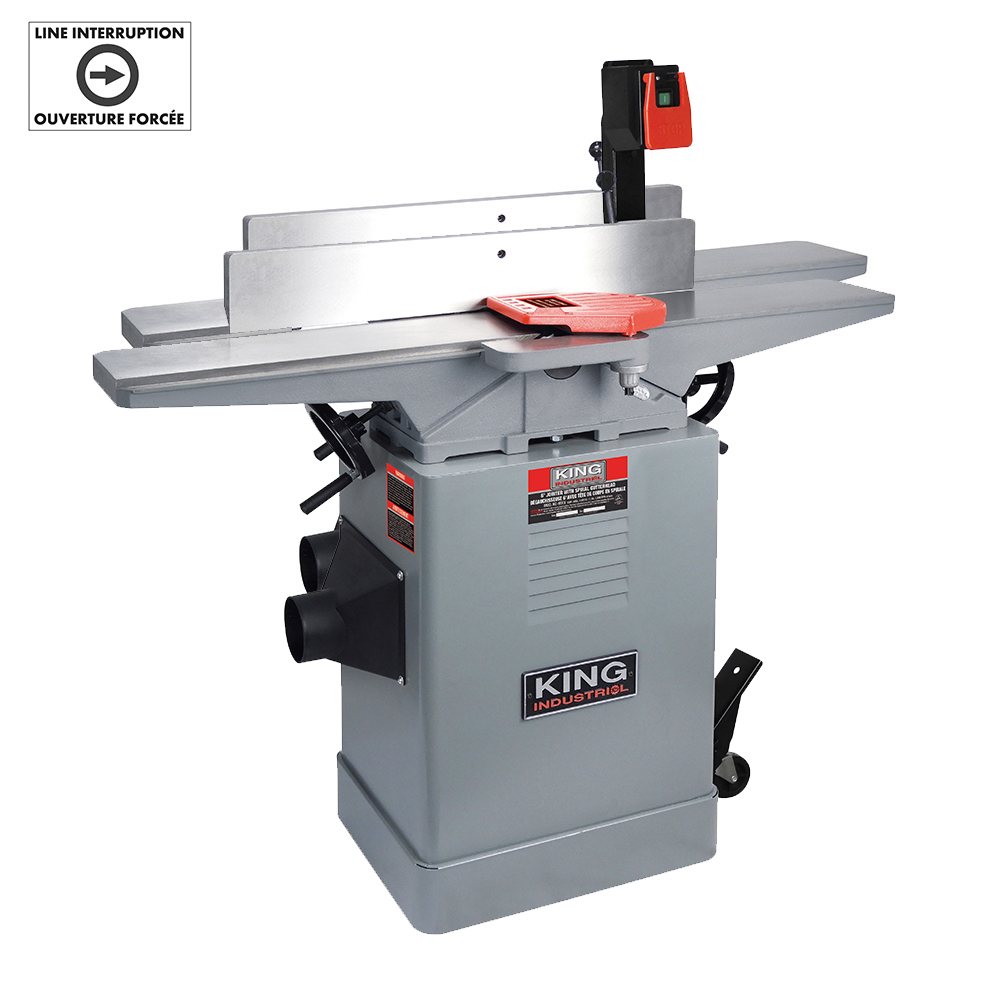

KC-65FX 6" JOINTER WITH SPIRAL CUTTERHEAD Zoom

MODEL: KC-65FX

6" JOINTER WITH SPIRAL CUTTERHEAD

  • Powerful 1 HP motor
  • A spiral cutterhead makes 50% less noise than a conventional cutterhead
  • Precision ground cast-iron tables
  • One piece welded cabinet stand has built-in 4" dust chute for dust collector hook-up
  • Handwheel actuated infeed table for quick easy height adjustment
  • Includes 2 safety push blocks



Substitute Banks Item
UPC
772995016280
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CAPACITY6"
  • CUTTERHEAD SPEED4,400 RPM
  • DIAMETER OF THE CUTTERHEAD2-3/8"
  • number of cutter inserts26 Inserts (15 mm x 15 mm x 2.5 mm)
  • rabbeting capacity1/2" x 6"
  • table size6-3/4" x 45-3/4"
  • fence size29" x 5"
  • motor11.4 Amp.
  • voltage110V, 1 phase, 60 Hz
  • Dimensions (LxWxh) / WEIGHT45-3/4" x 22-3/4" x 40-3/4" / 225 lbs
  • UPC7 72995 01628 0
