MODEL: KC-12HJPC

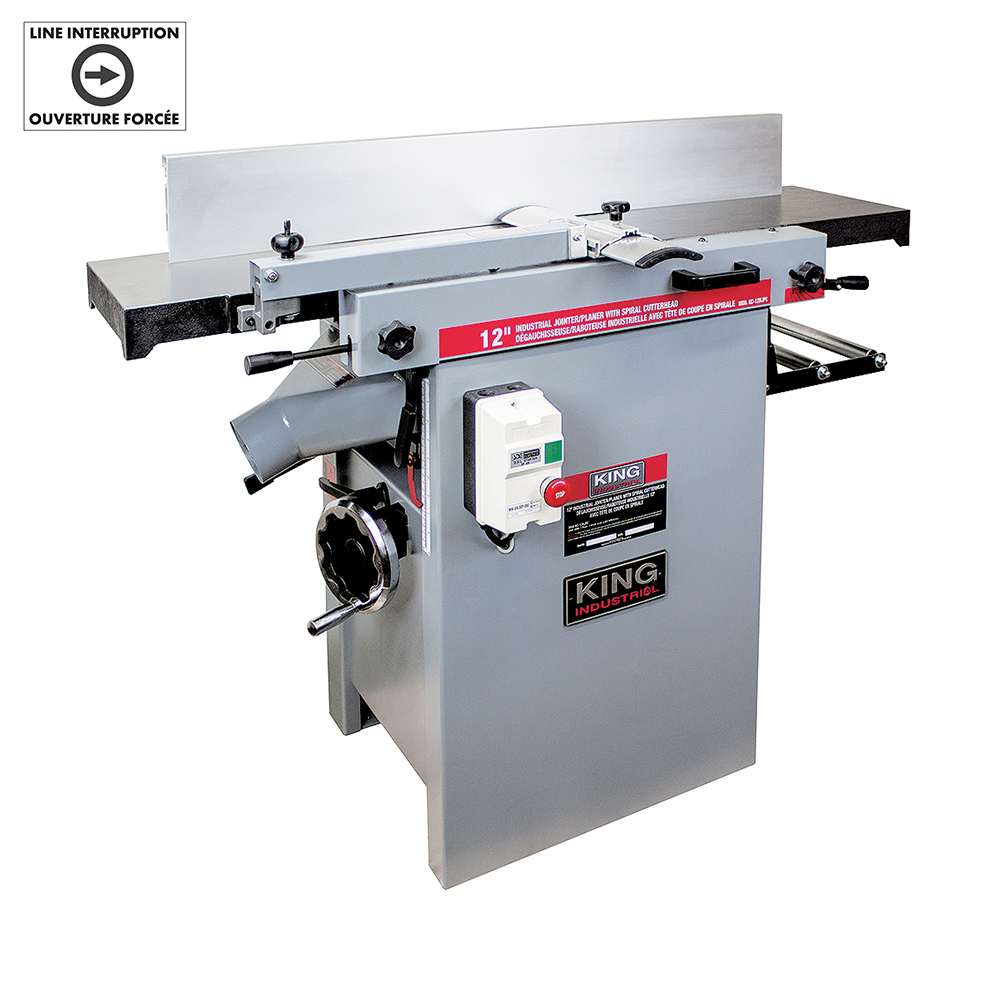

12'' INDUSTRIAL JOINTER/PLANER WITH SPIRAL CUTTERHEAD

  • Dual jointer / planer combination machine offers the capabilities of both machines without compromising your work space
  • Powerful 3 HP motor

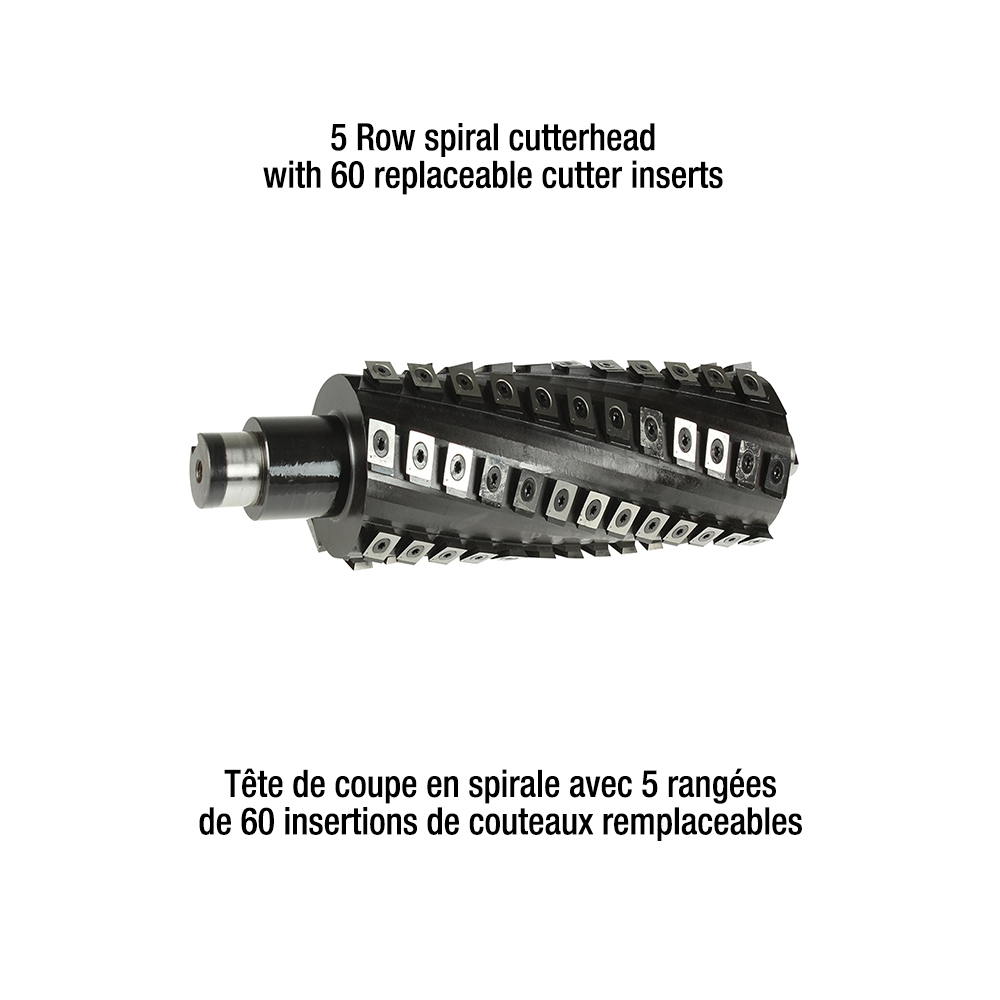

  • A spiral cutterhead is 50% quieter than a conventional cutterhead
  • Heavy duty design with precision cast-iron tables
  • Parallelogram table adjustment system keeps table close to cutterhead for improved finish and precise depth of cut adjustments
  • Large 43" x 6" aluminum extruded fence pivots 0 - 45˚
  • Bridge-style cutterhead guard
  • 4" dust chute rotates to be used for both jointing and planing operations
  • Magnetic safety switch
  • Comes with 2 push blocks, set of 5 replacement cutter inserts, 2 T25 Torx screwdrivers and adjustment hex. keys

Substitute Banks Item
UPC
772995015177

Video

Video

Specification

Specification

  • MAXIMUM JOINTING/PLANING WIDTH12"
  • MAXIMUM DEPTH OF CUT1/8"
  • SPIRAL CUTTERHEAD SPEED (RPM)6,500
  • SPIRAL CUTTERHEAD DIAMETER2-3/4"
  • NUMBER OF CUTTER INSERTS60 (15 mm x 15 mm x 2.5 mm)
  • MAXIMUM PLANING THICKNESS8-3/4"
  • PLANING FEED RATE22 FPM
  • TABLE SIZES (JOINTER/PLANER)51" x 12-1/4" x 21-3/4" x 12-1/4"
  • MOTOR10 Amp.
  • VOLTAGE220V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT51" x 32" x 39-1/2" / 465 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT52" x 22-1/2" x 38-1/2" / 540 lbs
  • UPC7 72995 01517 7
