KC-119FC-LS 17'' LONG STROKE DRILL PRESS WITH SAFETY GUARD Zoom

MODEL: KC-119FC-LS

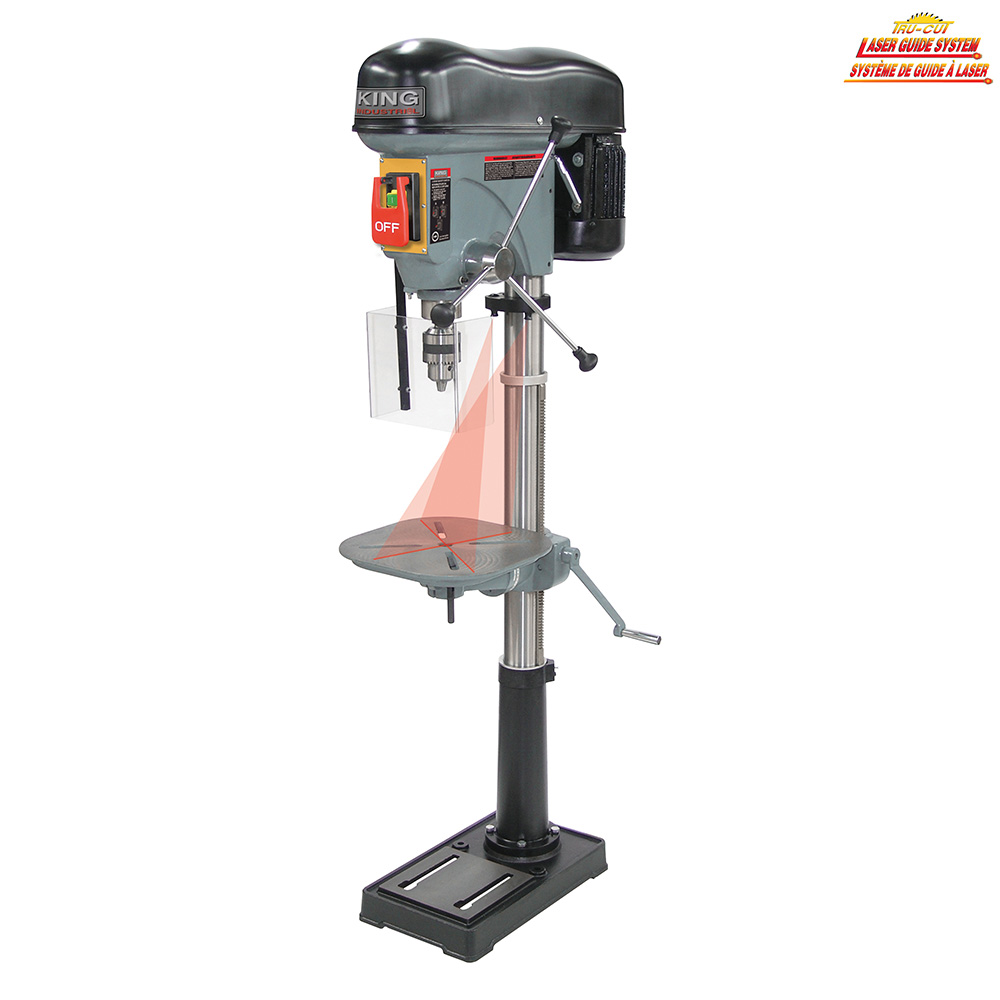

17'' LONG STROKE DRILL PRESS WITH SAFETY GUARD

  • Powerful 1 HP TEFC motor
  • Long 6” stroke allows this drill press to drill deeper than most

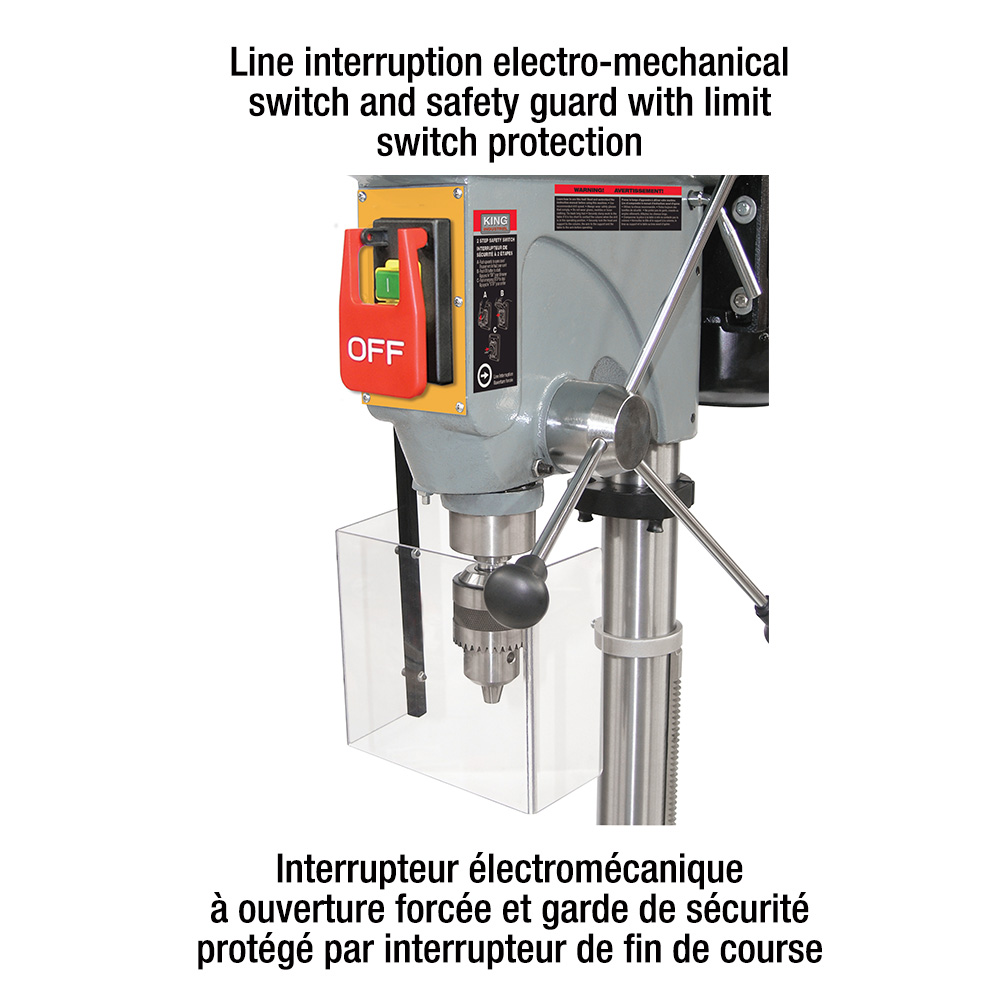

  • Safety guard with limit switch protection
  • Line interruption electro-mechanical switch needs a restart after a power failure
  • Dual intersecting adjustable laser guides

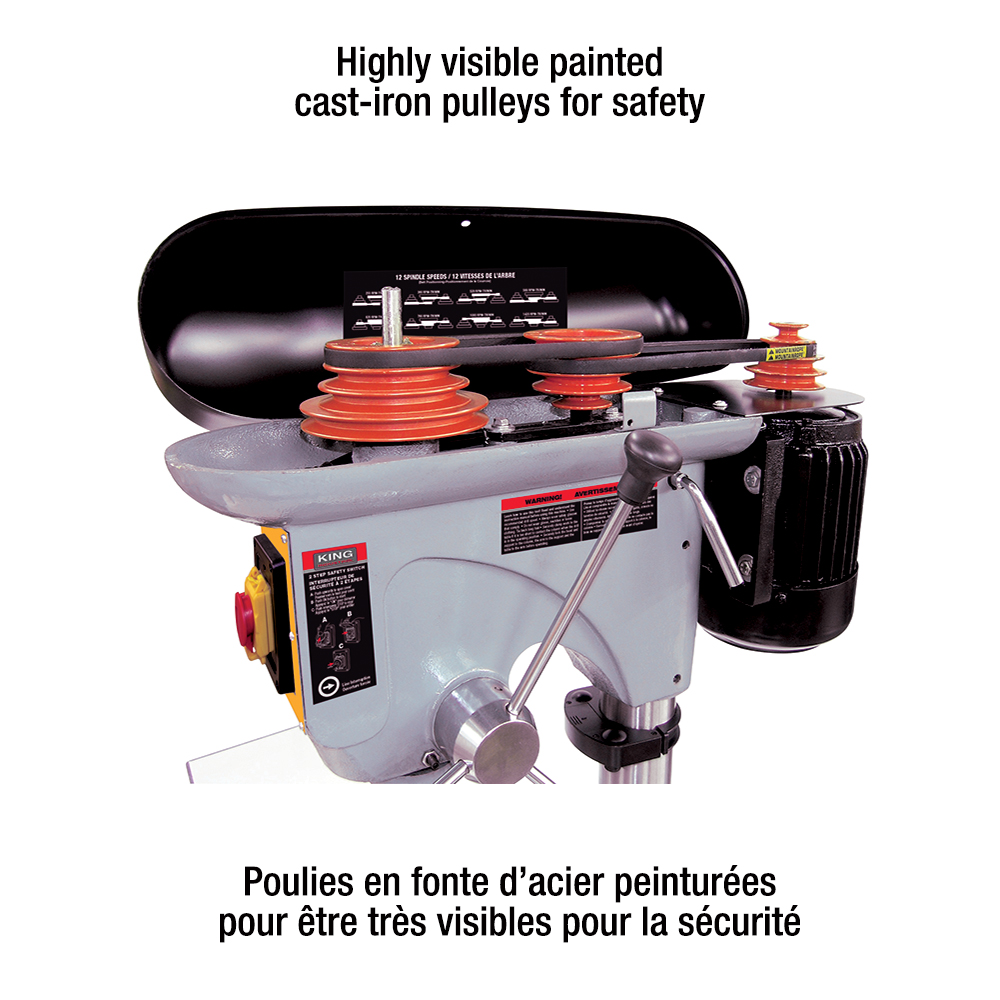

  • Cast-iron pulleys reduce vibration
  • 45° tilting table for angular drilling
  • 12 speed (255-2,750 spindle RPM)
  • Rack pivot collar allows the table to easily be swung out of the way without catching or twisting
  • Comes with 3/4” drill chuck, spring loaded chuck key, knock-out wedge and adjustment hex. keys

Substitute Banks Item
UPC
772995014255
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CAPACITY3/4"
  • CHUCK SIZE3/4"
  • SWING16-15/16"
  • MAX. DISTANCE CHUCK TO COLUMN8-7/16"
  • MAX. DISTANCE CHUCK TO TABLE23-3/4"
  • STROKE6"
  • TABLE SIZE14" x 14"
  • SPINDLE TAPERMT #3
  • QUILL DIAMETER75 mm
  • SPEEDS12 (255 - 2,750) RPM
  • MOTOR/VOLTAGE12.5 Amp. @ 110V, 6.25 Amp. @ 220V
  • PRE-WIRED110V
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT14" x 29" x 67-1/4" / 230 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT55-1/2" x 27-1/2" x 11" / 241 lbs
  • UPC7 72995 01425 5
