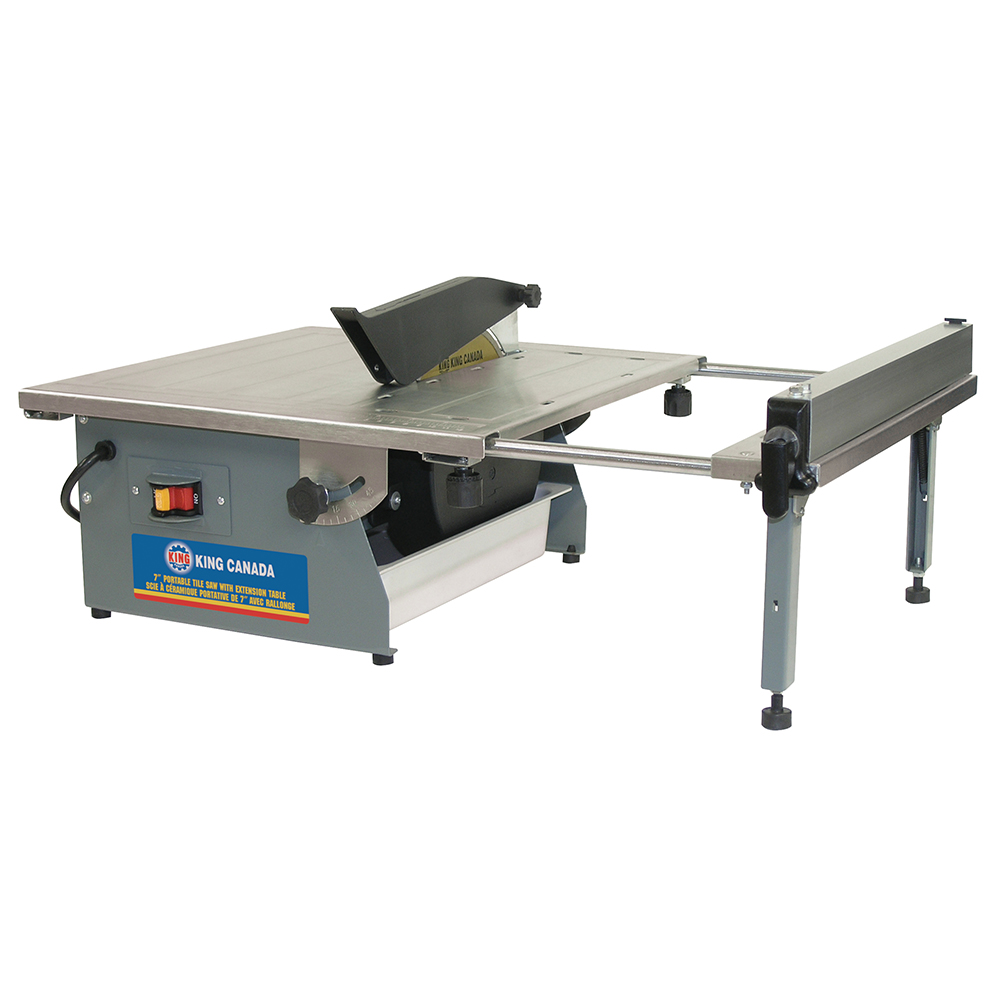

KC-3004ST 7" PORTABLE TILE SAW WITH EXTENSION TABLE Zoom

MODEL: KC-3004ST

7" PORTABLE TILE SAW WITH EXTENSION TABLE

  • Direct drive, 2/3 HP, 3,500 RPM motor

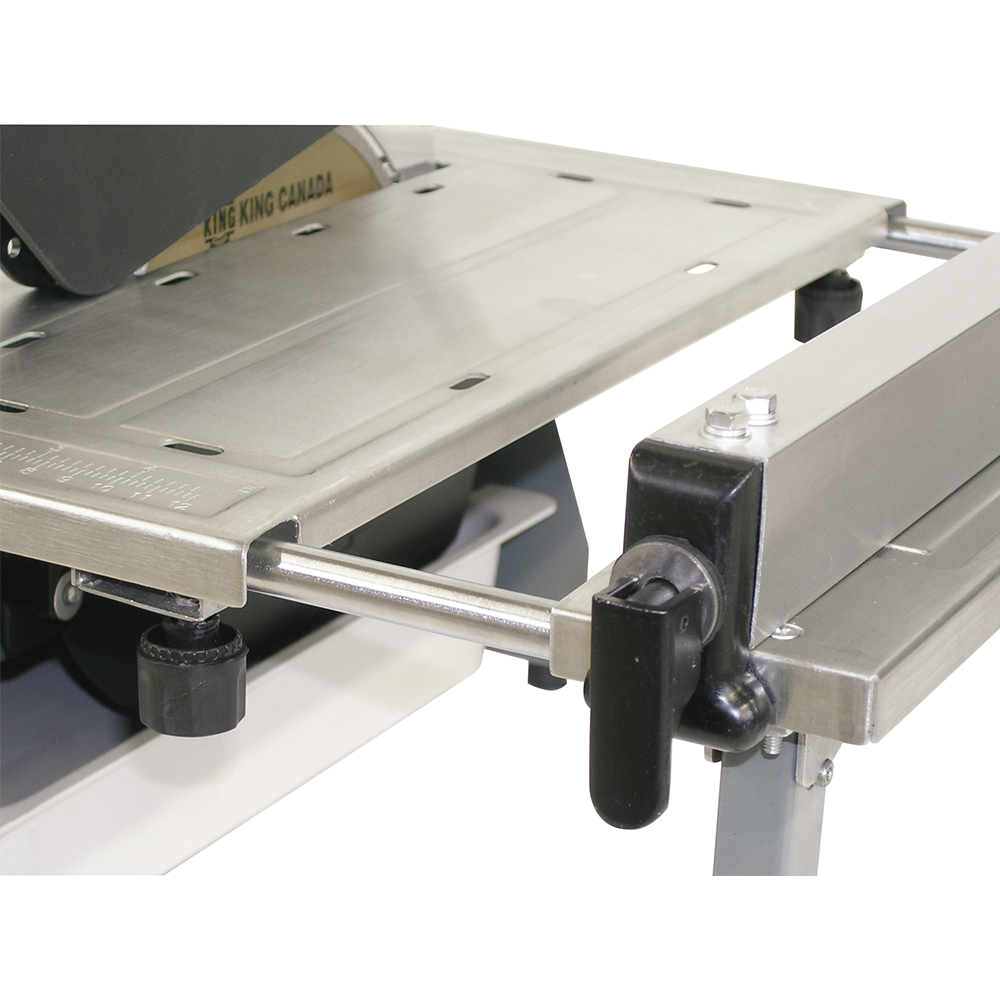

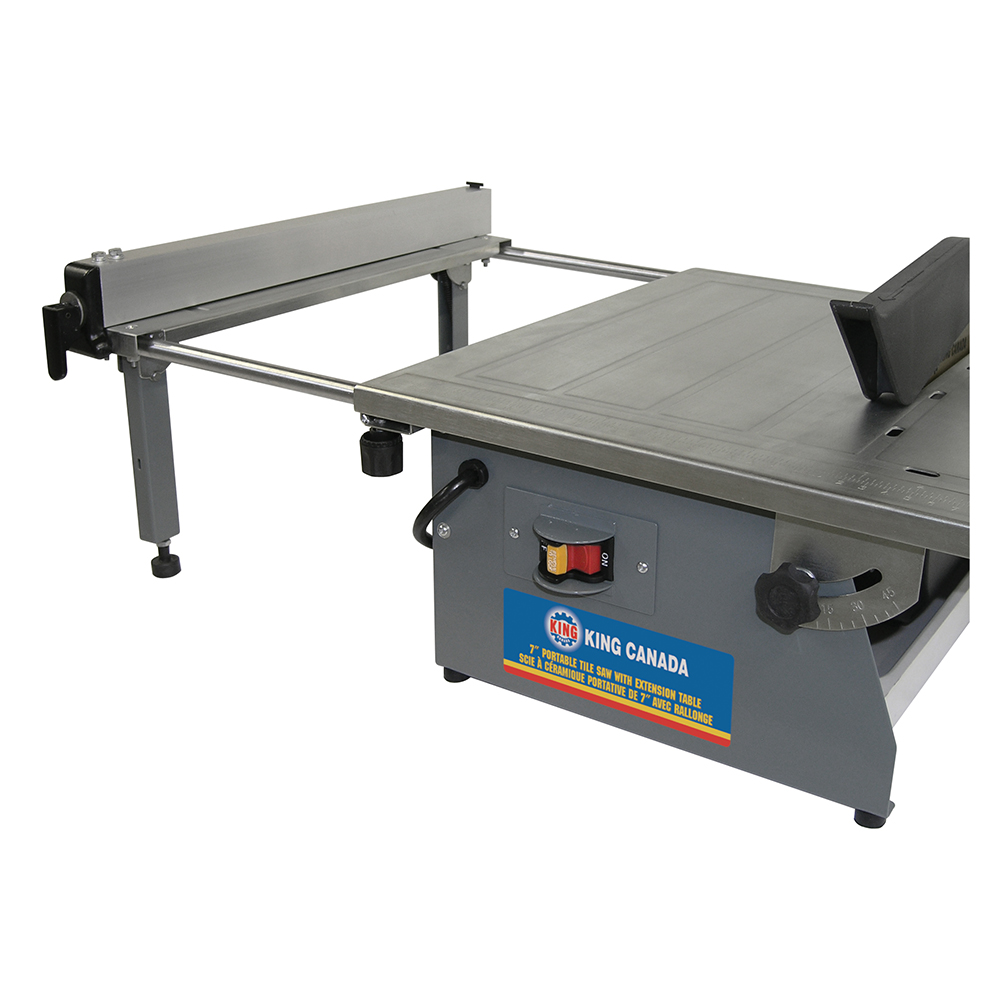

  • Slide out extension table with foldable legs can be installed on either the right or left side of the main table
  • Increased cutting capacity up to 14" to the right of the blade and up to 18" to the left
  • 7" diamond blade with 5/8" arbor cuts tiles up to 1-3/8" thick
  • Adjustable cutting table tilts from 0°-45° for versatile angle cutting
  • Water reservoir for cooling the blade
  • Specially designed motor avoids contact with water

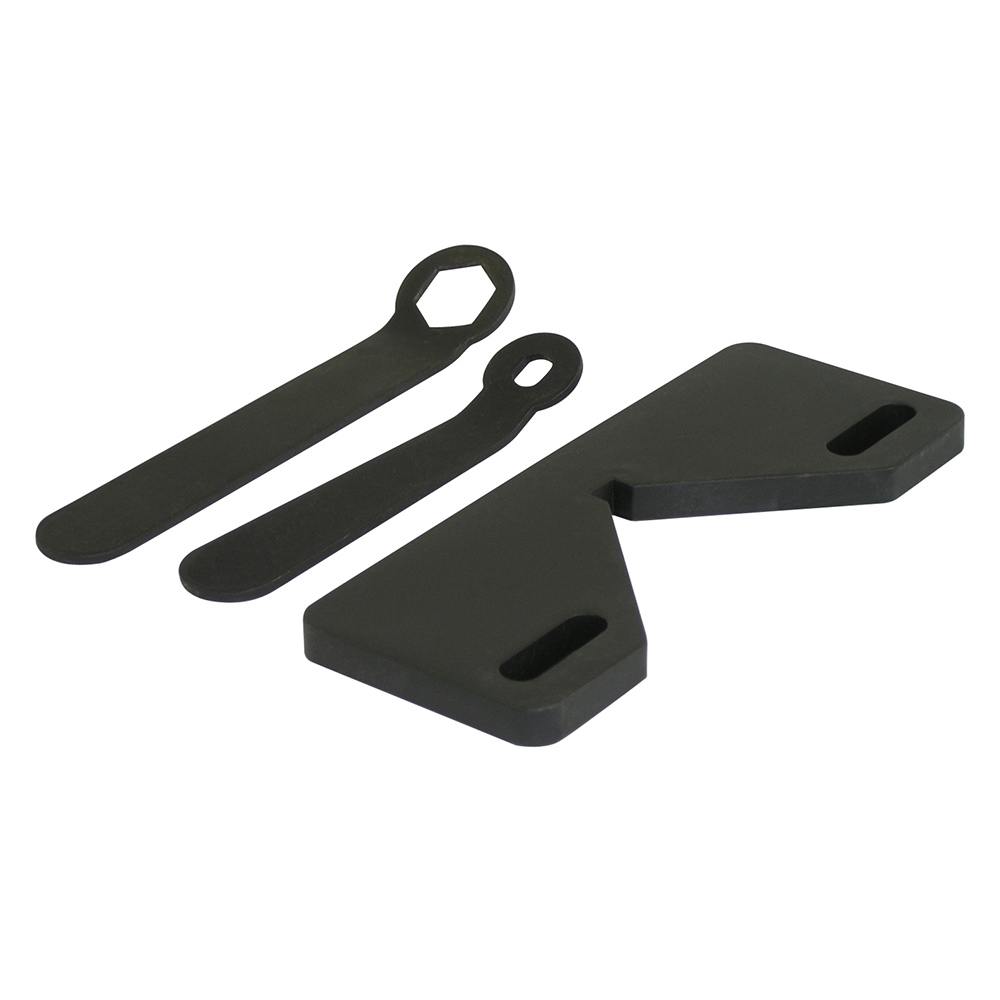

  • Comes with adjustable rip fence, V-push block for miter cuts and adjustment keys

Substitute Banks Item
UPC
772995011278
KING CANADA

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • BLADE DIAMETER7"
  • DEPTH OF CUT AT 45°1-3/8"
  • DEPTH OF CUT AT 90°1-3/8"
  • MAX RIP (RIGHT/LEFT)14" / 18"
  • MAIN TABLE SIZE15" x 15-1/2"
  • DIAMETER OF ARBOR5/8"
  • R.P.M.3,500 RPM
  • MOTOR3.75 Amp., 110V, 1 phase, 60Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT25" x 15-1/2" x 9" / 23.5 lbs
  • PACKAGE DIMENSIONS (LXWXH) / WEIGHT18-1/2" x 16" x 10" / 26 lbs
  • UPC7 72995 01127 8
