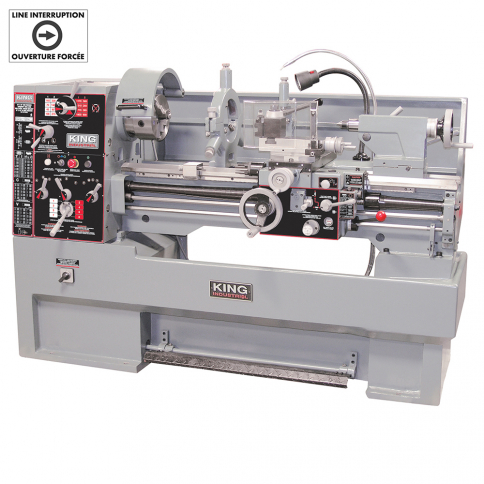

KC-1640ML 16" X 40" HIGH PRECISION "TOOLROOM" METAL LATHE Zoom

MODEL: KC-1640ML

16" X 40" HIGH PRECISION "TOOLROOM" METAL LATHE

  • Powerful 600V, 3 phase, 2 speeds 4 HP motor

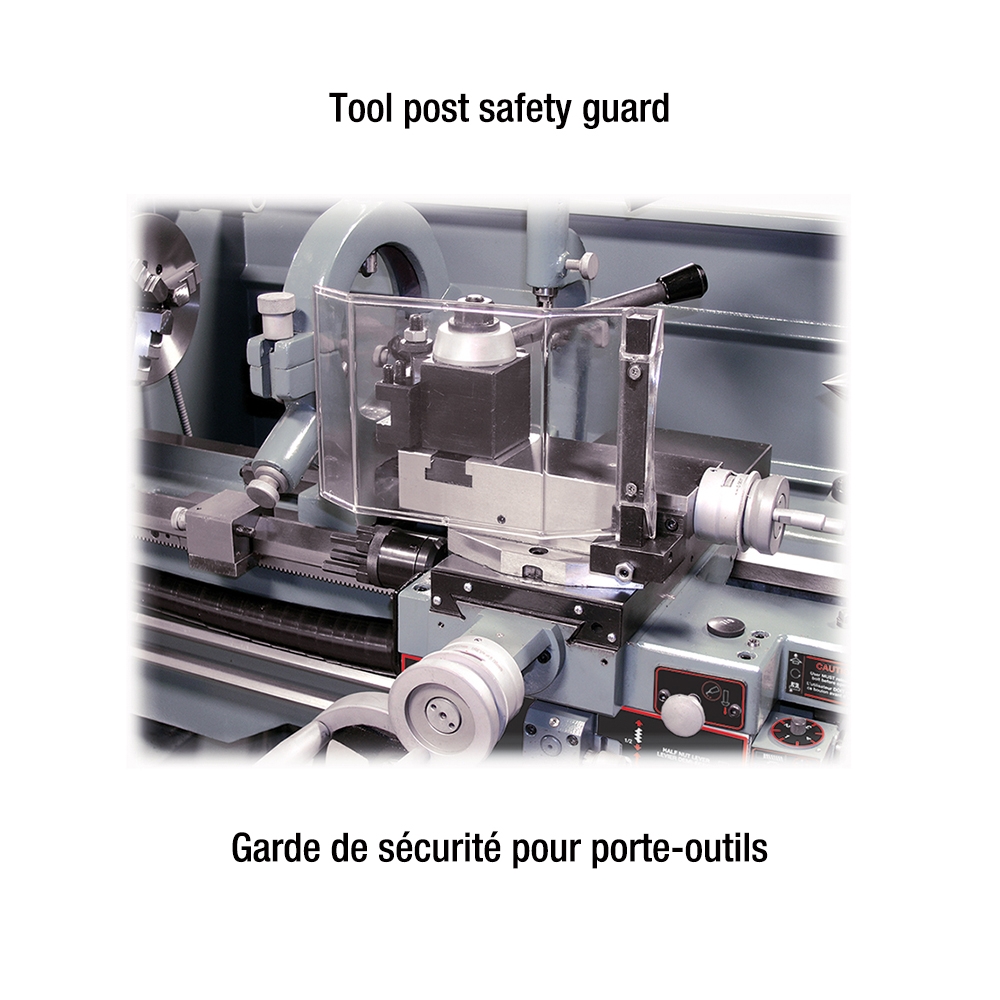

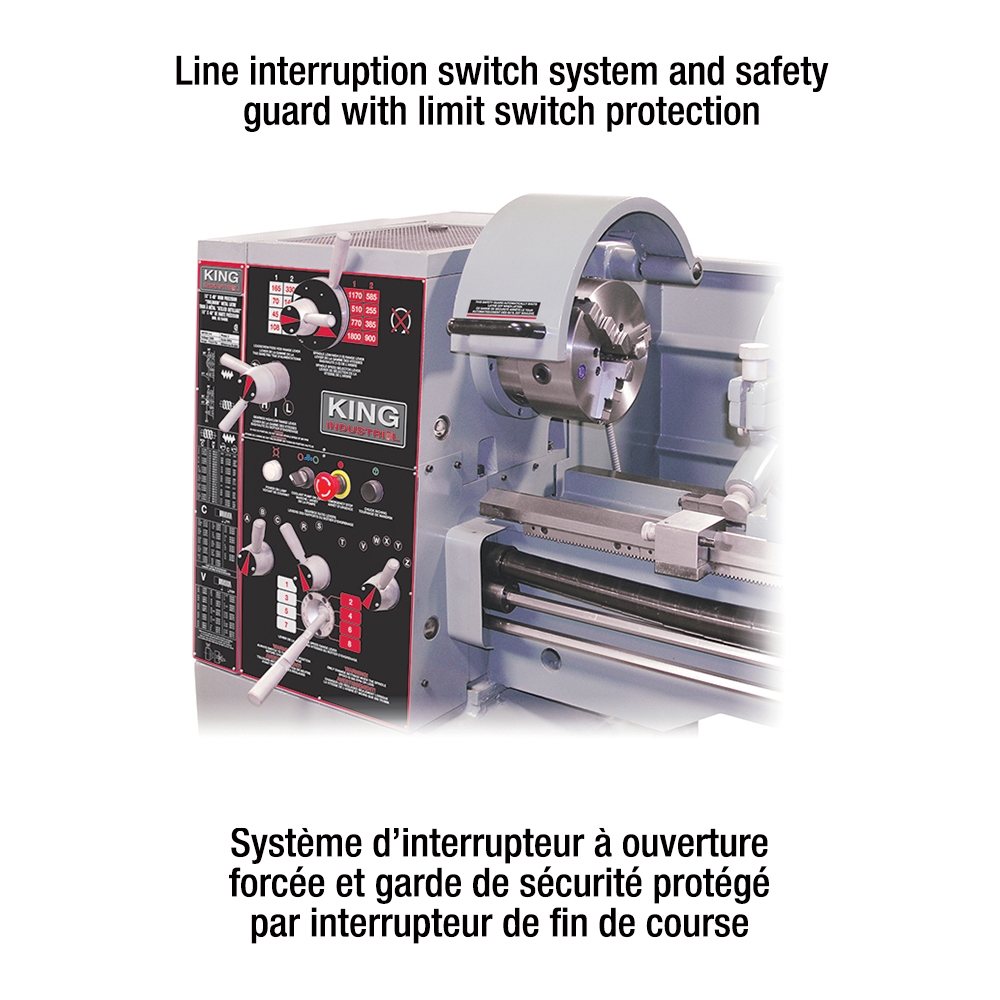

  • Safety features include line interruption switch system, chuck safety guard with limit switch protection, lead screw protectors and tool post safety guard
  • Totally enclosed gearbox allows cutting Inch, Metric, Whitworth, Modular and Diametrical threads
  • Guideway is all induction hardened and precision ground
  • Spindle foot brake incorporated in the full length cabinet stand
  • Comes complete with 8"-3 jaw chuck with inside and outside jaws, 12"-4 jaw chuck, quick change tool post and two 3/4” tool holders, steady and follow rests with roller guides, 14" (D1-6) camlock face plate, MT #4 standard dead centre, MT #4 carbide tipped dead centre, MT #4 to MT #6 spindle sleeve adapter, halogen light, coolant system, full length splash guard, manual micrometer carriage stop, tool box and wrenches

Substitute Banks Item
UPC
772995011728
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • SWING OVER BED16"
  • SWING OVER CROSS SLIDE10"
  • DISTANCE BETWEEN CENTRES40"
  • SWING OVER GAP22"
  • WIDTH OF BED10"
  • SPINDLE BORE DIAMETER2"
  • TAPER IN SPINDLE BOREMT #6
  • RANGE OF SPINDLE SPEEDS16 (45-1,800 RPM)
  • NUMBER AND RANGE OF INCH THREADS45 (2-72 TPI)
  • NUMBER AND RANGE OF METRIC THREADS39 (0.2 - 14 mm)
  • NUMBER AND RANGE OF MODULAR PITCHES18 (0.3 - 3.5 MP)
  • NUMBER AND RANGE OF DIAMETRICAL PITCHES21 (8 - 44 DP)
  • LONGITUDINAL FEED RANGE0.002" - 0.067"
  • TRANSVERSAL FEED RANGE0.0011" - 0.038"
  • TAILSTOCK CENTER TAPER/TRAVELMT #4, 4-3/4"
  • MOTOR (2 SPEED)4 HP / 5 Amp. 600V, 3 phase, 60 Hz
  • COOLANT PUMP MOTOR1/8 HP / 600V, 3 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT76-3/8" x 33-1/2" x 51-1/4" / 2,975 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT82" x 33" x 65" / 3,250 lbs
  • UPC7 72995 01172 8
