KC-S3622 36" X 22 GA. SLIP ROLL Zoom

MODEL: KC-S3622

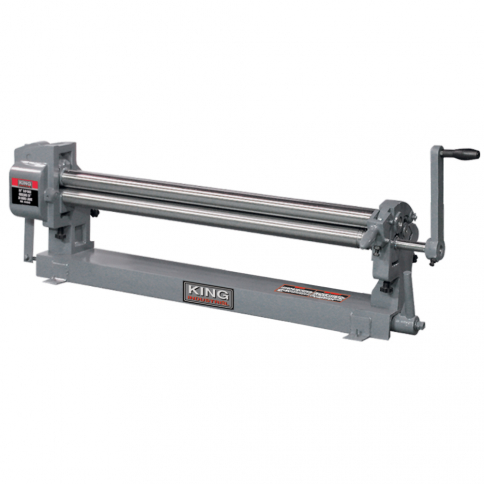

36" X 22 GA. SLIP ROLL

  • Heavy cast-iron construction with front mounted handle for easy placement and release of workpiece
  • Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
  • Hardened steel gearing
  • Large roll adjusting screws facilitate lifting the upper roll for easy removal of material

Substitute Banks Item
UPC
772995012923
KING INDUSTRIAL

DEALER LOCATORINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • MAXIMUM LENGTH36"
  • CAPACITY (MILD STEEL)22 Gauge
  • DIAMETER OF ROLLS2"
  • MINIMUM FORMING RADIUS1"
  • WIRE GROOVE DIAMETERS5/32", 15/64", 5/16"
  • GEARING RATIO1:1
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT55" x 12" x 19" / 176 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT52-3/4" x 12-1/2" x 19-5/ 8" / 215 lbs
  • UPC7 72995 01292 3
