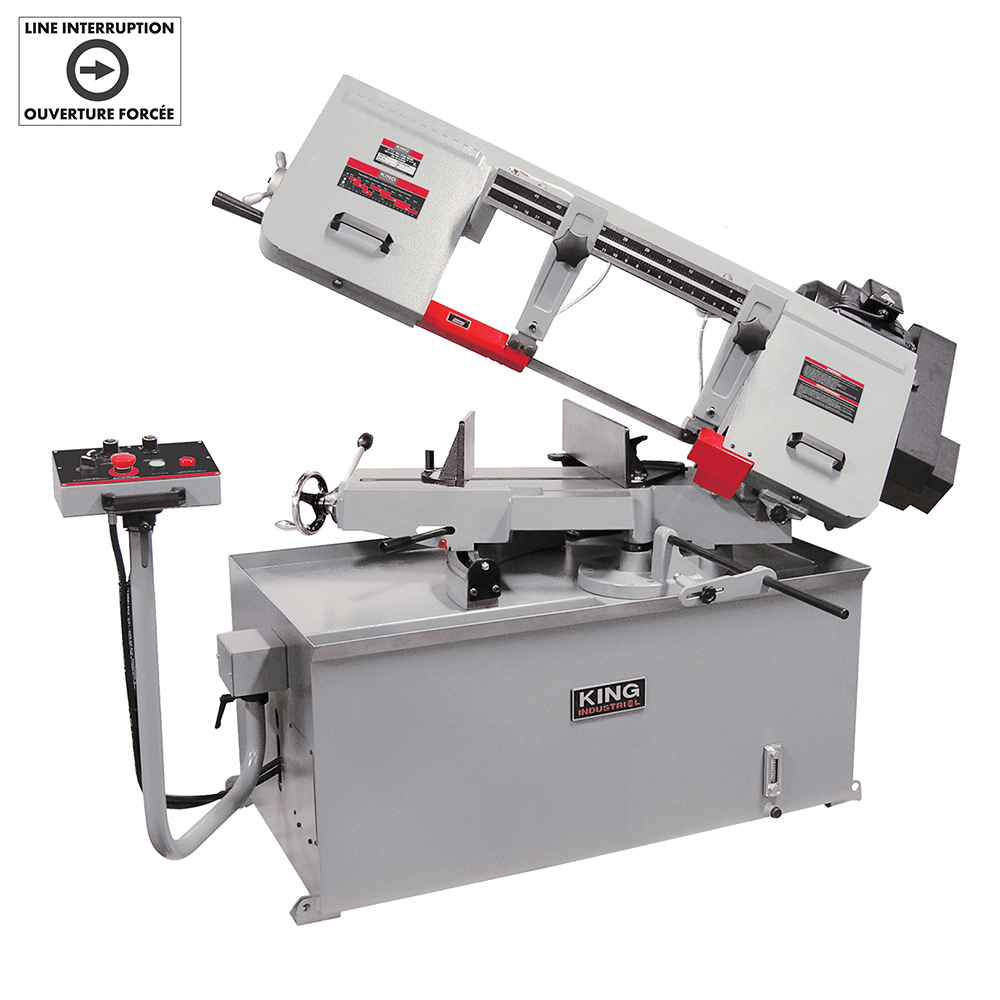

KC-228S-V-6 10" X 18" VARIABLE SPEED SWIVEL METAL BANDSAW (600V,3 PHASE) Zoom

MODEL: KC-228S-V-6

10" X 18" VARIABLE SPEED SWIVEL METAL BANDSAW (600V,3 PHASE)

  • Powerful 2 HP motor
  • Swivel base from 0° to 45°
  • Position adjustable control panel and automatic shut-off
  • Adjustable hydraulic down feed control
  • Carbide ball bearing blade guides
  • To ensure reliable accurate cuts, both adjustable control arms can be positioned as close to the cut as possible
  • Exclusive 24 Volt control panel
  • Coolant system with regulator valves provide an even flow of coolant to the blade
  • TRU-LOCK™ quick locking vise system

Substitute Banks Item
UPC
772995012138
KING INDUSTRIAL

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • CUTTING CAPACITY AT 90°Rect. 10" x 18" ⦁ Diam. 10"
  • CUTTING CAPACITY AT 45°Rect. 7-7/8" x 7-7/8" ⦁ Diam. 7-7/8"
  • VARIABLE SPEEDS73-312 FPM
  • BLADE121-3/4" x 1" x 0.035"
  • TABLE HEIGHT FROM FLOOR30"
  • MOTOR2.6 Amp.
  • VOLTAGE600V, 3 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT81" x 28" x 48" / 845 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT73" x 32" x 51" / 980 lbs
  • UPC7 72995 01213 8
