MODEL: KC-1700WM-VS

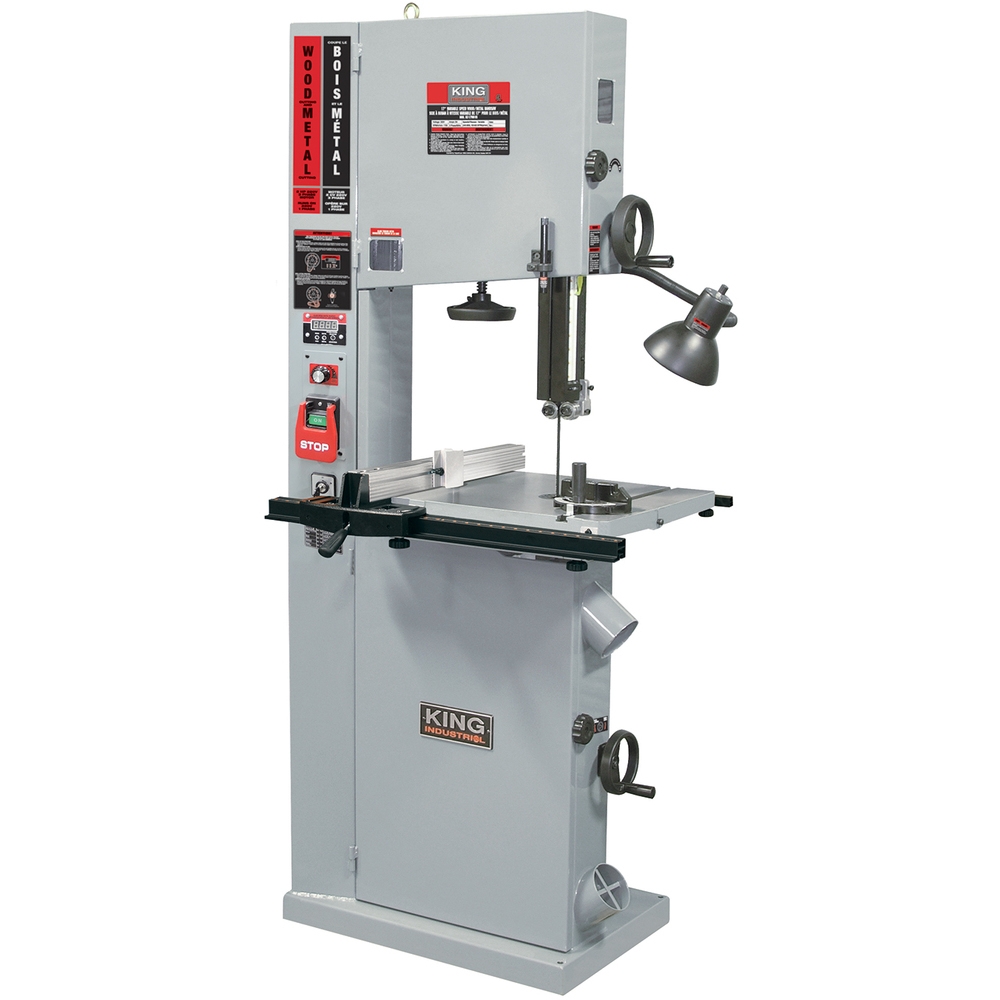

17" VARIABLE SPEED WOOD/METAL CUTTING BANDSAW

  • Designed for both wood and metal cutting applications

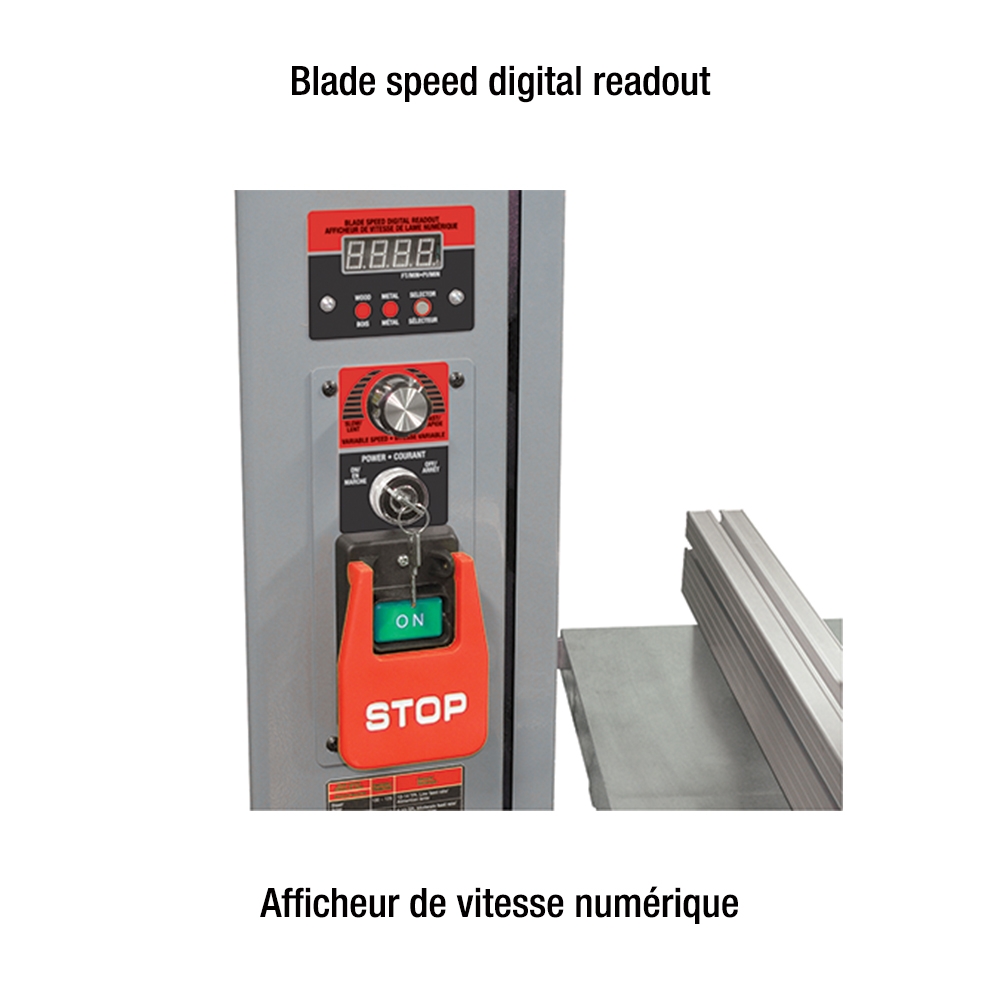

  • Variable frequency drive speed control and digital display for blade speed in feet/min
  • Adjustable dual/opposing upper/lower ball bearing blade guides system
  • Balanced upper and lower cast-iron wheels
  • Rack and pinion height adjustment system
  • 2 x 4" dust chutes for dust collector hook-up
  • Solid cast-iron table tilts 5° left/45° right

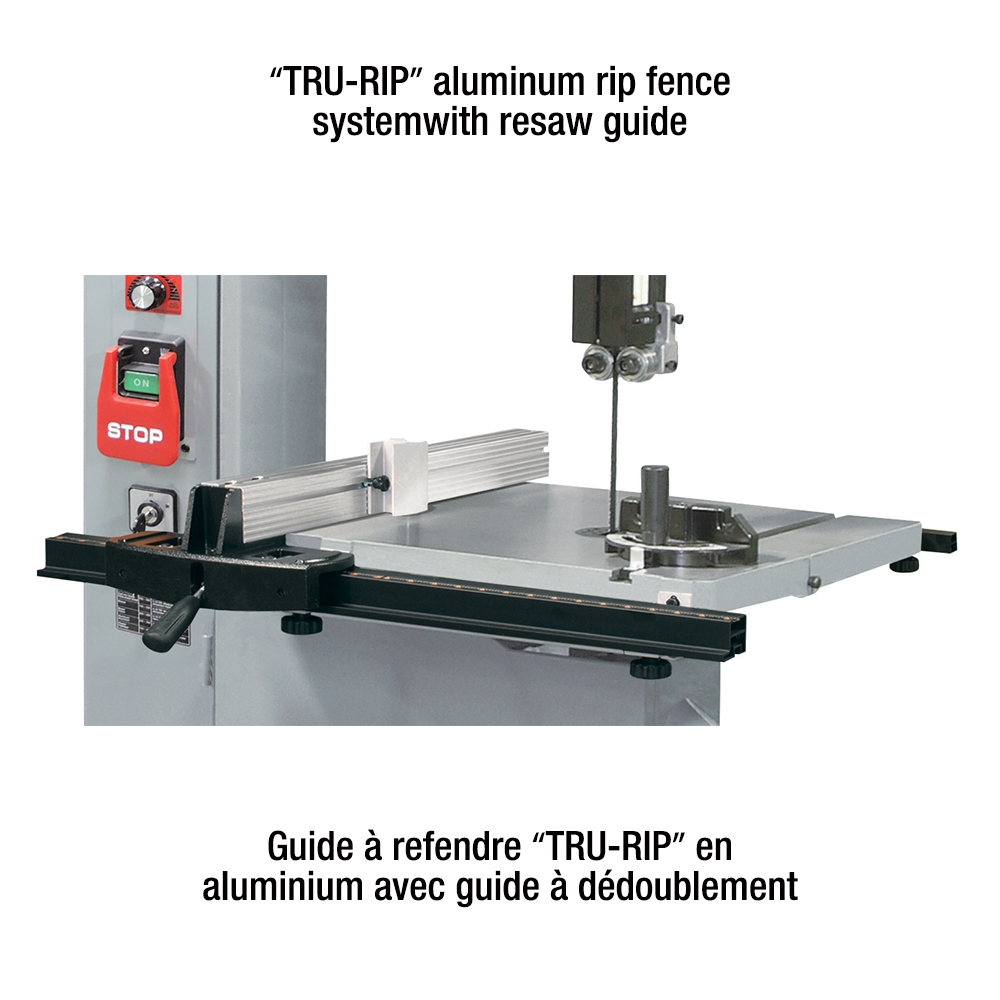

  • Comes with a 1/2" x 6 TPI wood cutting blade, 1/2" x 10 TPI metal cutting blade, laser guide, work lamp, miter gauge and a precision “TRU-RIP” aluminum rip fence with resaw guide

Substitute Banks Item
UPC
772995011186

Specification

Specification

  • CUTTING CAPACITY FRAME TO BLADE16-1/4"
  • TABLE SIZE23-1/2" x 17"
  • TABLE HEIGHT FROM FLOOR37-1/2"
  • BLADE SIZE131-1/2" x (1/8" - 1") x 0.025"
  • HEIGHT OF CUT12"
  • MOTOR2 HP, 220V, 3 phase, 7 Amp.
  • VOLTAGE (INPUT POWER)220V, 1 phase, 60 Hz
  • VARIABLE SPEEDS (WOOD)540 - 3,600 SFPM
  • VARIABLE SPEEDS (METAL)100 - 650 SFPM
  • DIMENSIONS (LXWXH) / WEIGHT33" x 30" x 74" / 440 lbs
  • UPC7 72995 01118 6
