MODEL: KQCT-1318

7 PC. QUICK CHANGE TOOL POST KIT

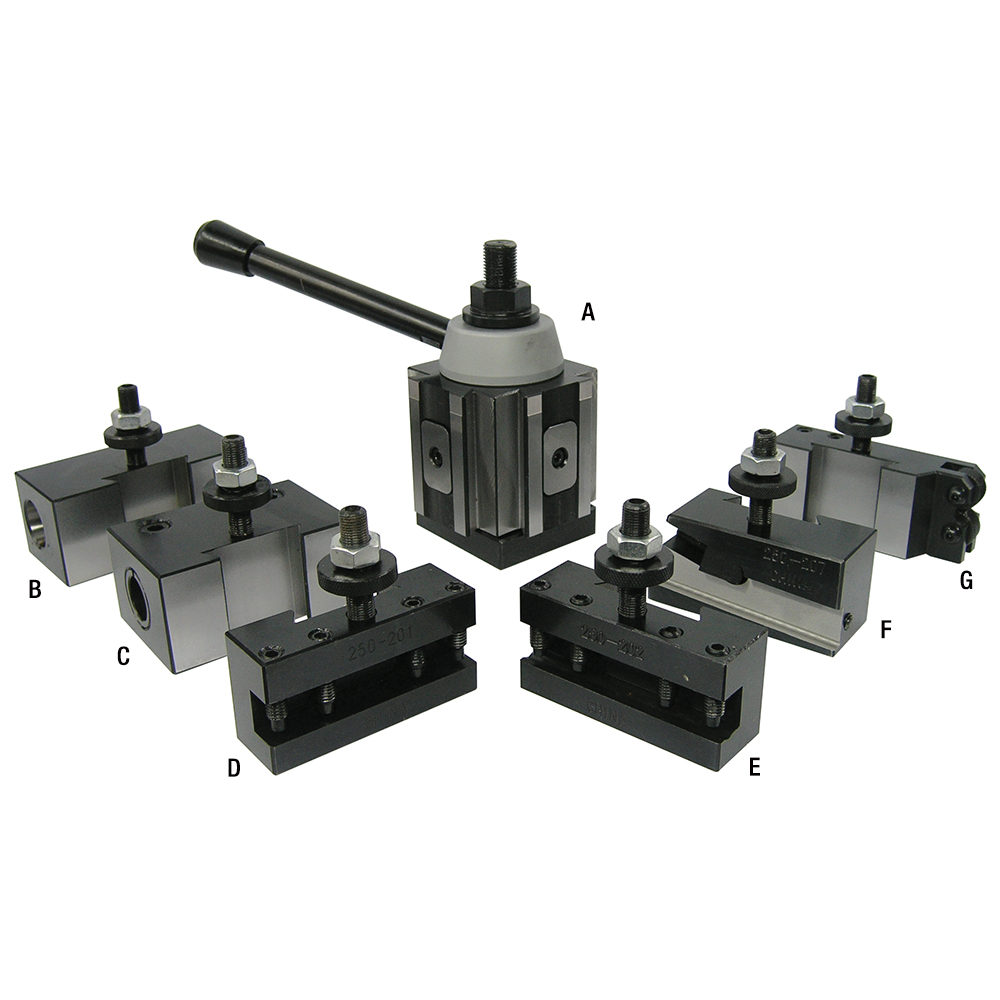

Series 300 Kit includes:

A- Tool post (250-300)

B- MT3 Morse taper tool holder (250-353)

C- Heavy-duty boring bar tool holder (250-304)

D- Turning & facing tool holder (250-301)

E- Boring, turning & facing tool holder (250-302)

F- Universal Parting blade tool holder (250-307)

G- Knurling, turning & facing tool holder (250-310)

Fits KC-1640ML and KC-1660GH.



Substitute Banks Item
UPC
772995008315

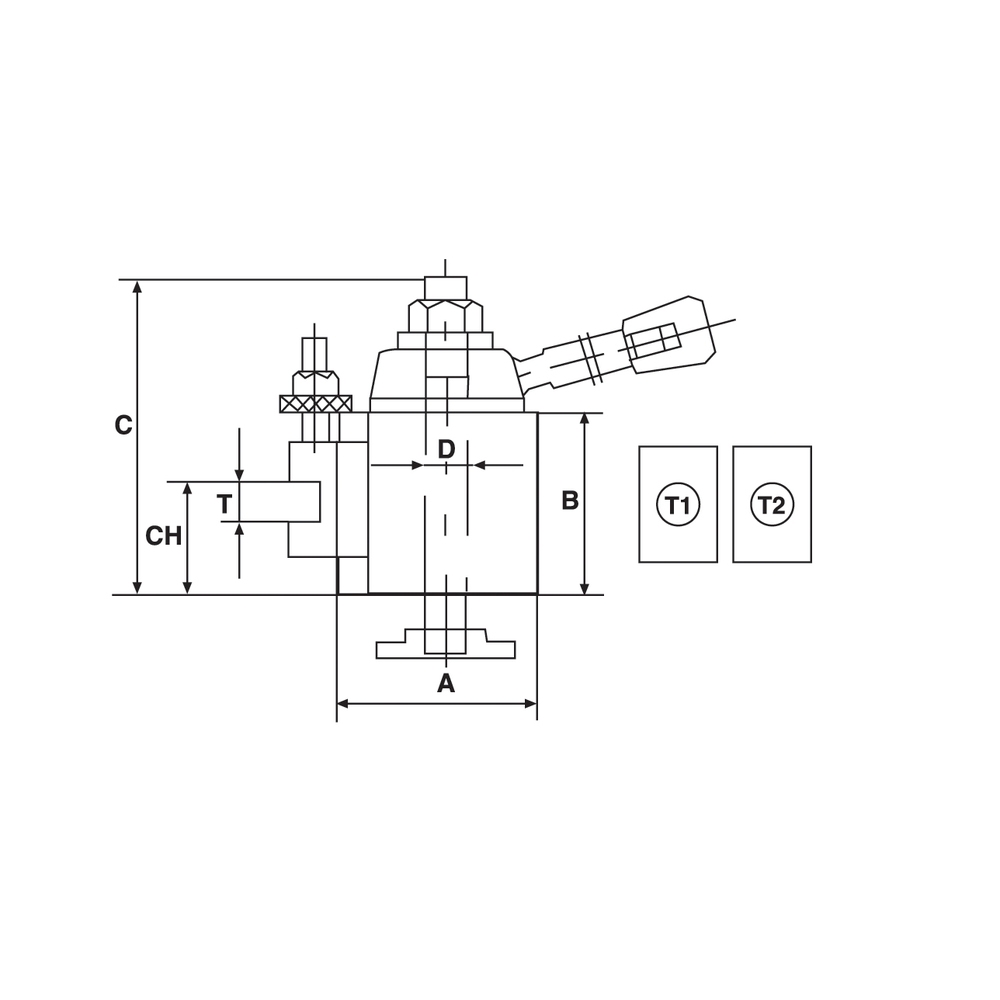

Specification

Specification

  • MAX. SWING13"- 18"
  • A3-1/2"
  • B3-1/4"
  • C5-1/2"
  • D3/4"
  • T3/4"
  • T1 (250-104, 204, 304)3/4" diam.
  • T2 (250-153, 253, 353)1-1/4" diam.
  • CH (MIN/MAX)1-1/4" - 2-1/4"
  • UPC7 72995 00831 5
