Specification
- MAXIMUM PLANING WIDTH15"
- MAXIMUM PLANING THICKNESS8"
- MAXIMUM DEPTH OF CUT1/8"
- CUTTERHEAD SPEED5,000 RPM
- CUTTERHEAD DIAMETER2-7/8"

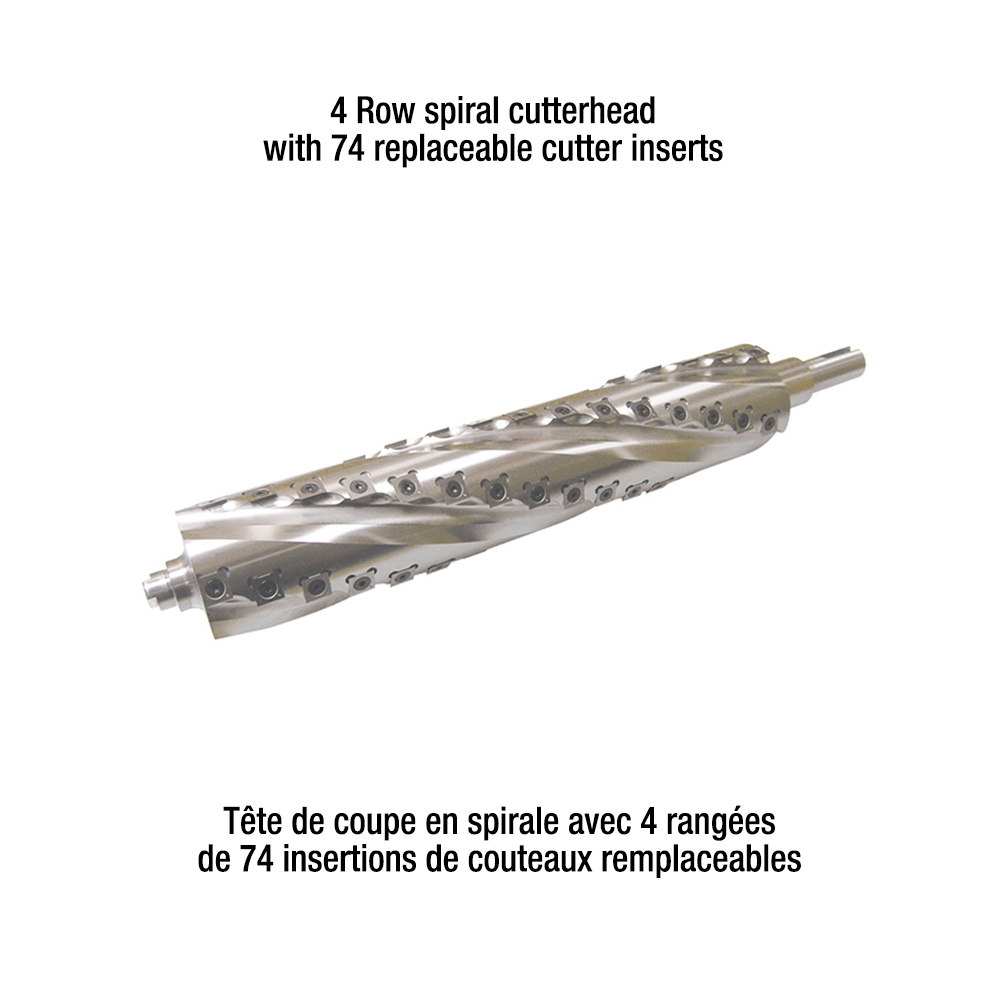

- NUMBER OF KNIVES/CUTTER INSERTS74 (14 mm x 14 mm x 2 mm)

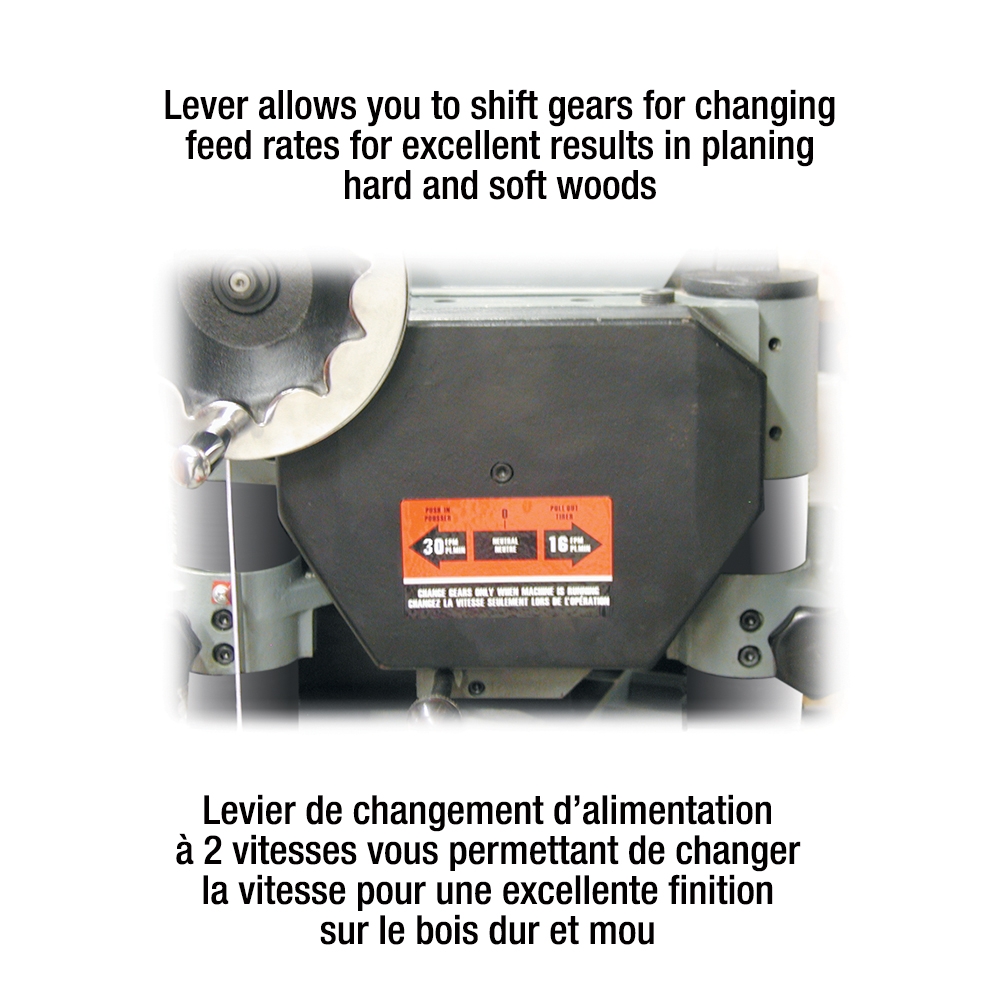

- FEED RATE2 (16-30) FPM
- NUMBER OF CUTS PER INCH78-63
- MOTOR15 Amp.
- VOLTAGE220V, 1 phase, 60 Hz
- ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT32-1/2" x 42" x 45" / 625 lbs
- PACKAGING DIMENSIONS (LXWXH) / WEIGHT31-1/8" x 29-1/4" x 47-1/2" / 630 lbs
- UPC7 72995 00746 2
