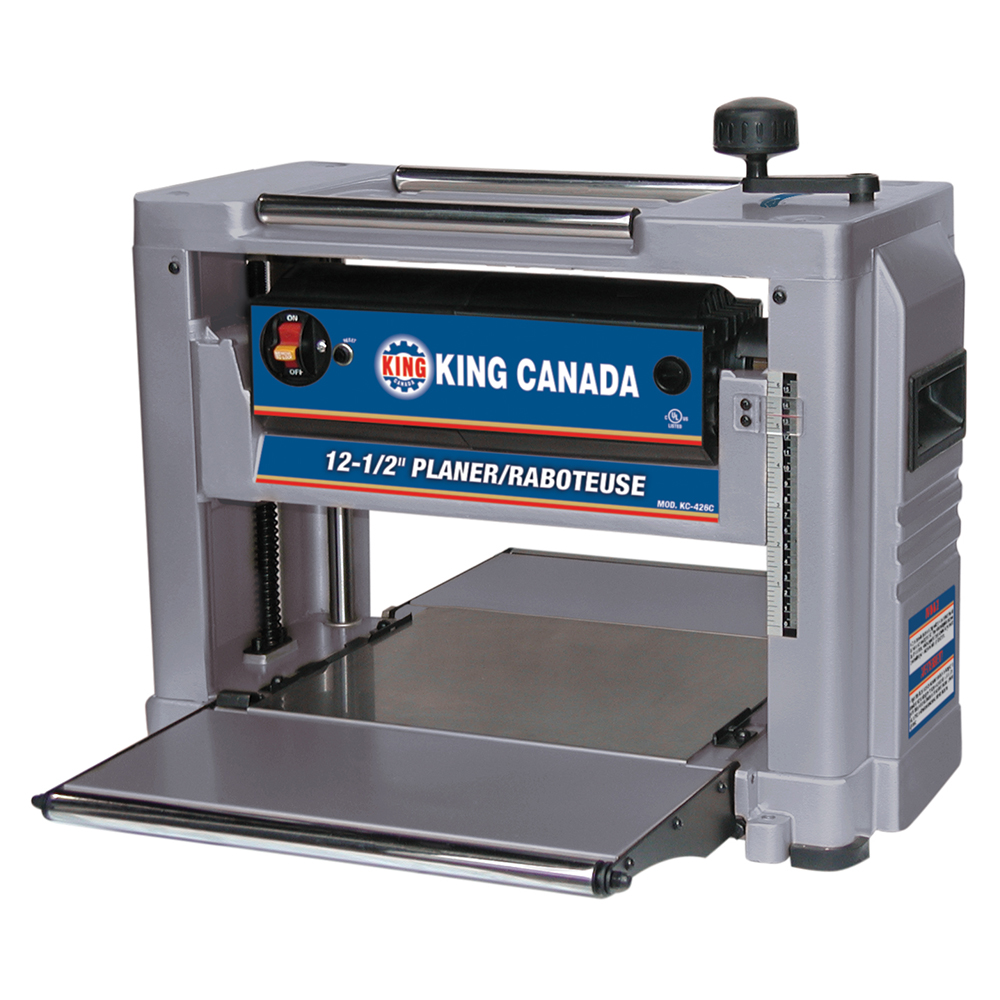

KC-426C 12-1/2" PORTABLE PLANER Zoom

MODEL: KC-426C

12-1/2" PORTABLE PLANER

  • 15 Amp. motor powers cutterhead and feed rollers simultaneously
  • Cutterhead raises and lowers on four precision ground columns for extra stability
  • Adjustable extension tables include a roller to assist in feeding stock
  • Side mounted carrying handles
  • Comes complete with 2 double-edged reversible knives, knife setting gauge and wrench

Substitute Banks Item
UPC
772995002795
KING CANADA

DEALER LOCATORSERVICE MANUALINSTRUCTION MANUALPRINT SPEC SHEETDOWNLOAD A HIGH RESOLUTION IMAGE

Specification

Specification

  • MAXIMUM PLANING WIDTH12-1/2"
  • MAXIMUM PLANING THICKNESS6"
  • MAXIMUM DEPTH OF CUT1/8"
  • NUMBER OF KNIVES2 reversible
  • REVERSIBLE FEED RATE26.2 FPM
  • NUMBER OF CUTS PER MINUTE16,000
  • MOTOR15 Amp.
  • VOLTAGE110V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT23" x 23-1/2" x 19" / 67 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT24" x 14-1/2" x 17-7/8" / 73 lbs
  • UPC7 72995 00279 5
